A23P Door Latch Assembly - Passenger
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

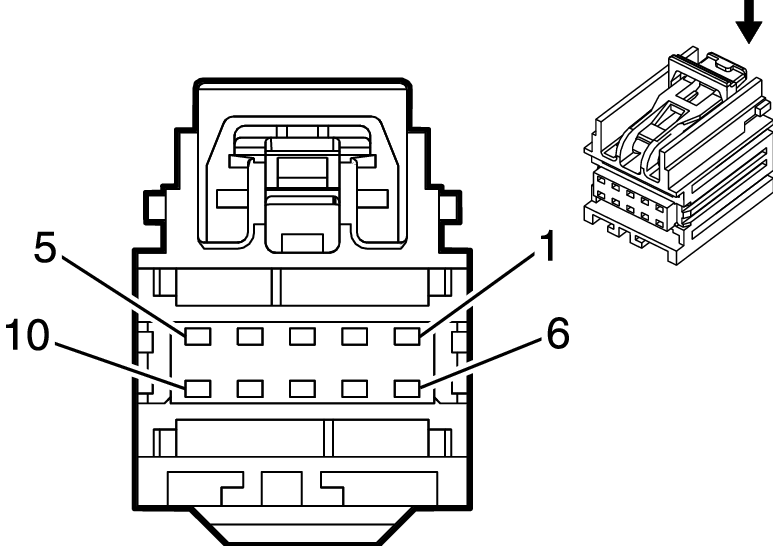

Connector Part Information
- Harness Type: Passenger Door
- OEM Connector: 15127041
- Service Connector: Service by Harness - See Part Catalog
- Description: 10-Way F 0.64 YESC Kaizen Series (GN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.5 |
BK |
2050 |
Ground |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.5 |
GY |
746 |
Right Front Door Ajar Switch Signal |
I |
- |
| 6 - 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.75 |
BN/YE |
294 |
Door Lock Actuator Unlock Control |
I |
- |
| 9 |
0.75 |
GY |
295 |
Door Lock Actuator Lock Control |
I |
- |
| 10 |
- |
- |
- |
Not Occupied |
- |
- |
