B107 Accelerator Pedal Position Sensor
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

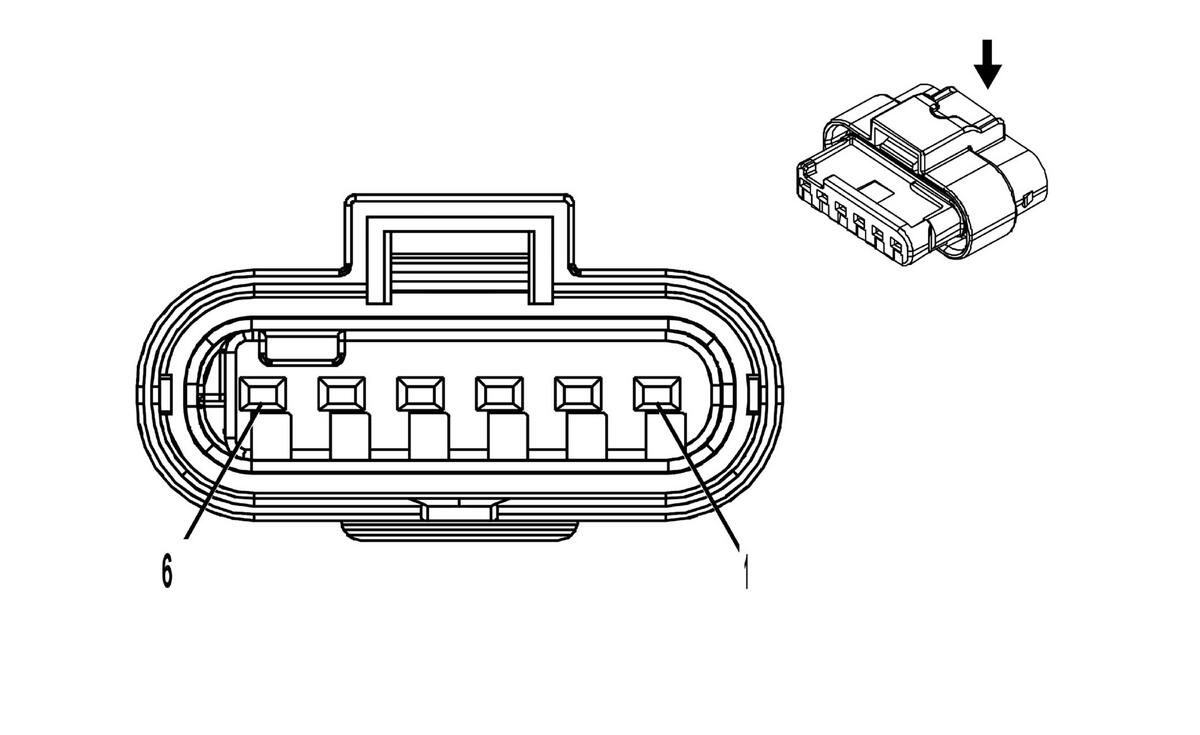

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13580186
- Service Connector: 19330667
- Description: 6-Way F 1.2 MCP Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BN/RD |
1274 |
Accelerator Pedal Position 5V Reference 2 |
I |
- |
| 2 |
0.5 |
WH/RD |
1164 |
Accelerator Pedal Position 5V Reference 1 |
I |
- |
| 3 |
0.5 |
YE/WH |
1161 |
Accelerator Pedal Position Signal 1 |
I |
- |
| 4 |
0.5 |
BK/BU |
1271 |
Accelerator Pedal Position Low Reference 1 |
I |
- |
| 5 |
0.5 |
BK/VT |
1272 |
Accelerator Pedal Position Low Reference 2 |
I |
- |
| 6 |
0.5 |
GN/WH |
1162 |
Accelerator Pedal Position Signal 2 |
I |
- |
