K26 Headlamp Control Module (T4F)
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

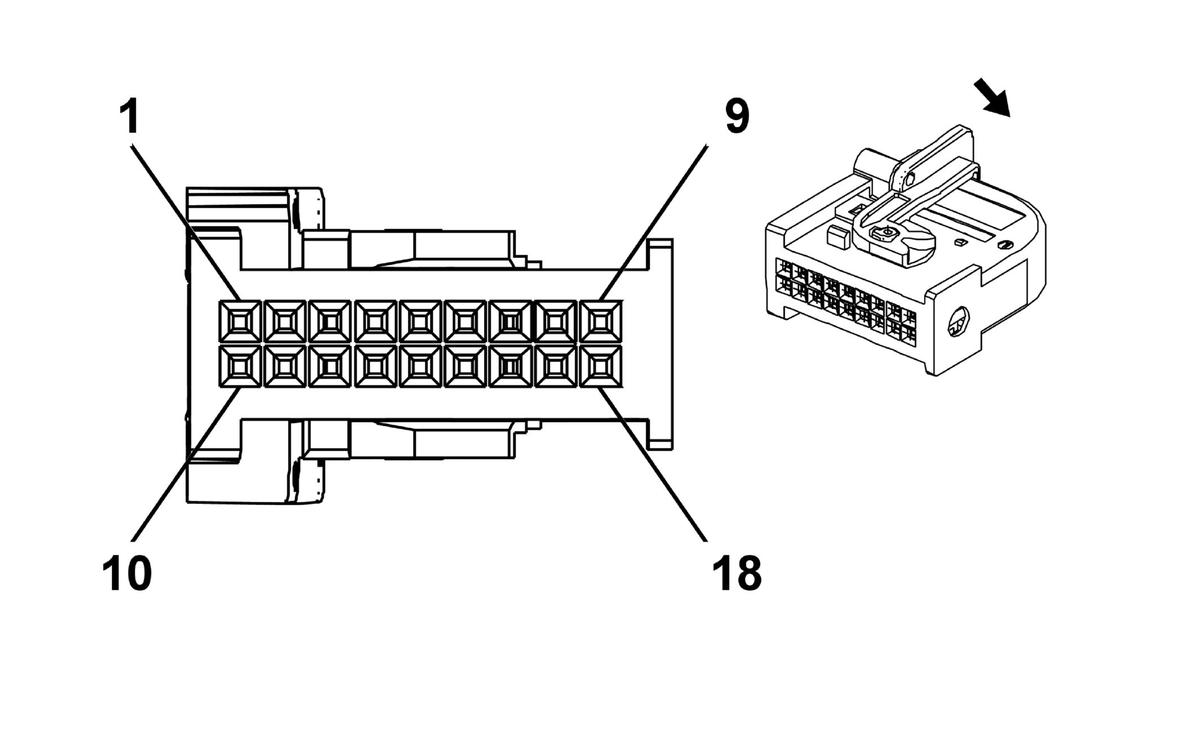

Connector Part Information
- Harness Type: Body
- OEM Connector: 13292662
- Service Connector: 19259530
- Description: 18-Way F 0.64 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575859 |
J-35616-64B (LT BU) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
1050 |
Ground |
I |
T95/T4F |
| 2 |
0.5 |
WH/RD |
2165 |
Automatic Level Control Position Sensor 5V Reference |
I |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.35 |
WH |
2501 |
High Speed GMLAN Serial Data (-) 1 |
I |
- |
| 5 |
0.35 |
BU |
2500 |
High Speed GMLAN Serial Data (+) 1 |
I |
- |
| 6 - 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.5 |
RD/VT |
1242 |
Battery Positive Voltage |
I |
- |
| 11 |
0.5 |
WH/RD |
7524 |
Front Axle Level Sensor 5V Reference |
I |
- |
| 12 - 18 |
- |
- |
- |
Not Occupied |
- |
- |
