K32 Steering Wheel Heating Control Module X2 (UVD)
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

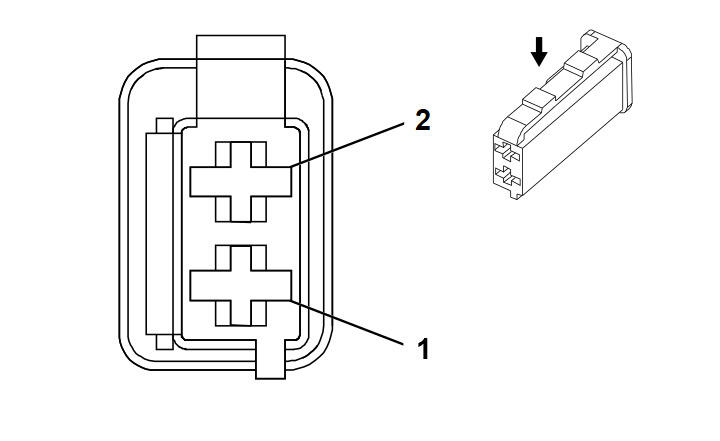

Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: 19179871
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 1.6 Timer Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT/BN |
1141 |
Run Ignition 3 Voltage |
I |
- |
| 2 |
0.5 |
BK |
1650 |
Ground |
I |
- |
