K40D Seat Memory Control Module - Driver X2 (A45)
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

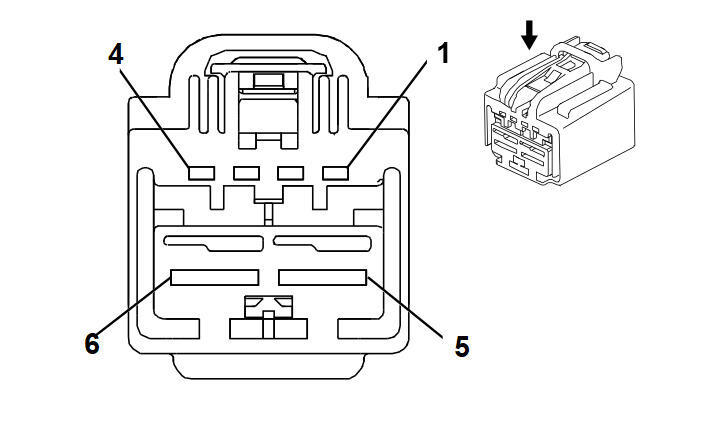

Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 15226104
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F YESC Kaizen Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GN |
5060 |
Low Speed GMLAN Serial Data |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
GN/WH |
7530 |
Local Interconnect Network Serial Data Bus 8 |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
2.0 |
BK |
2350 |
Ground |
I |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
