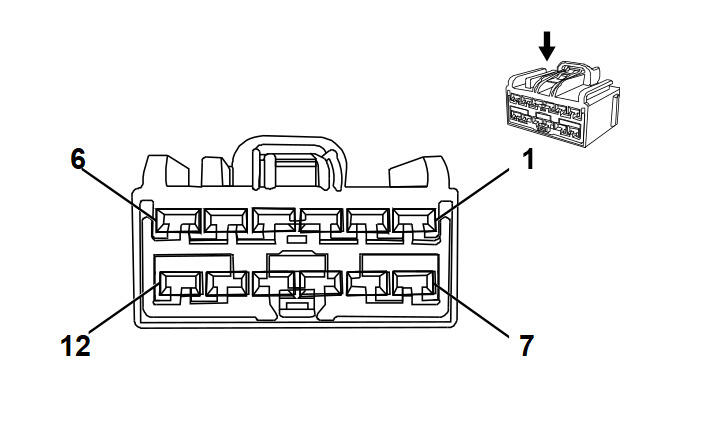

K40D Seat Memory Control Module - Driver X3 (A45)
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 19178907
- Service Connector: Service by Harness - See Part Catalog
- Description: 12-Way F 2.8 Kaizen Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.0 |
GN/YE |
276 |
Driver Power Seat Recline Motor Forward Control |
I |
- |
| 2 |
2.0 |
BU/YE |
277 |
Driver Power Seat Recline Motor Rearward Control |
I |
- |
| 3 |
2.0 |
GN/BN |
286 |
Driver Power Seat Front Vertical Motor Up Control |
I |
- |
| 4 |
2.0 |
BU/VT |
287 |
Driver Power Seat Front Vertical Motor Down Control |
I |
- |
| 5 |
2.0 |
YE |
282 |
Driver Power Seat Rear Vertical Motor Up Control |
I |
- |
| 6 |
2.0 |
GY/BU |
283 |
Driver Power Seat Rear Vertical Motor Down Control |
I |
- |
| 7 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
2.0 |
YE/BU |
285 |
Driver Power Seat Horizontal Motor Forward Control |
I |
- |
| 12 |
2.0 |
GY/GN |
284 |
Driver Power Seat Horizontal Motor Rearward Control |
I |
- |
