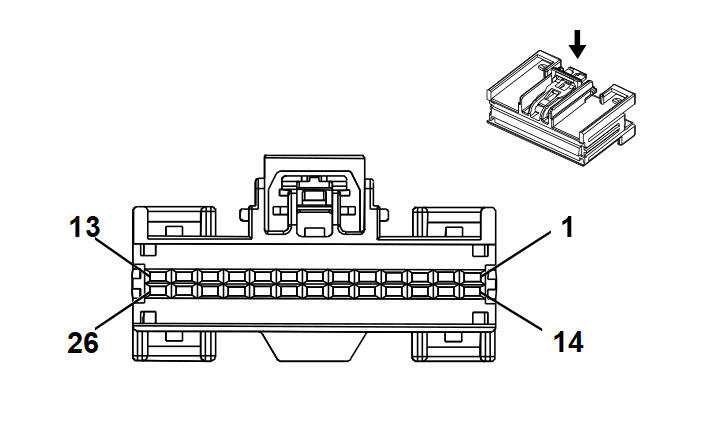

K40D Seat Memory Control Module - Driver X5 (A45)
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 13581049
- Service Connector: Service by Harness - See Part Catalog
- Description: 26-Way F 0.64 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
WH/RD |
3298 |
Memory Sensor High Reference 2 |
I |
- |
| 2 - 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.5 |
BN |
3038 |
Right Rear Haptic Seat Motor Control |
I |
- |
| 5 |
0.5 |
YE/BN |
3037 |
Left Rear Haptic Seat Motor Control |
I |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.5 |
YE/BN |
1522 |
Power Seat Horizontal Forward Switch Signal |
I |
- |
| 8 |
0.5 |
GY/GN |
1523 |
Power Seat Horizontal Rearward Switch Signal |
I |
- |
| 9 |
0.5 |
GN/BN |
1518 |
Power Seat Front Vertical Up Switch Signal |
I |
- |
| 10 |
0.5 |
BU/VT |
1520 |
Power Seat Front Vertical Down Switch Signal |
I |
- |
| 11 |
0.35 |
GN |
569 |
Memory Seat Horizontal Motor Position Sensor Signal |
I |
- |
| 12 |
0.35 |
BN/WH |
557 |
Memory Seat Front Vertical Motor Position Sensor Signal |
I |
- |
| 13 - 18 |
- |
- |
- |
Not Occupied |
- |
- |
| 19 |
0.5 |
YE |
1519 |
Power Seat Rear Vertical Up Switch Signal |
I |
- |
| 20 |
0.5 |
YE/BU |
1521 |
Power Seat Rear Vertical Down Switch Signal |
I |
- |
| 21 |
0.5 |
GY/BK |
1269 |
Power Seat Recline Forward Switch Signal |
I |
- |
| 22 |
0.5 |
GN/GY |
1270 |
Power Seat Recline Rearward Switch Signal |
I |
- |
| 23 - 24 |
- |
- |
- |
Not Occupied |
- |
- |
| 25 |
0.35 |
YE/BU |
568 |
Memory Seat Rear Vertical Motor Position Sensor Signal |
I |
- |
| 26 |
0.35 |
WH/BK |
570 |
Driver Memory Seat Recline Motor Position Sensor Signal |
I |
- |
