T6 Power Inverter Module X2 (KI6)
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

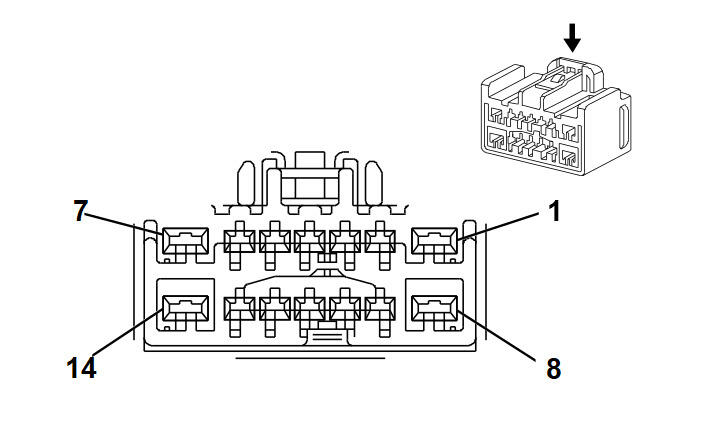

Connector Part Information
- Harness Type: Body
- OEM Connector: 88988260
- Service Connector: Not Available
- Description: 14-Way F 1.5, 2.8 Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
Not Available |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.35 |
GN |
5060 |
Low Speed GMLAN Serial Data |
I |
- |
| 11 - 14 |
- |
- |
- |
Not Occupied |
- |
- |
