Steering Column Lock

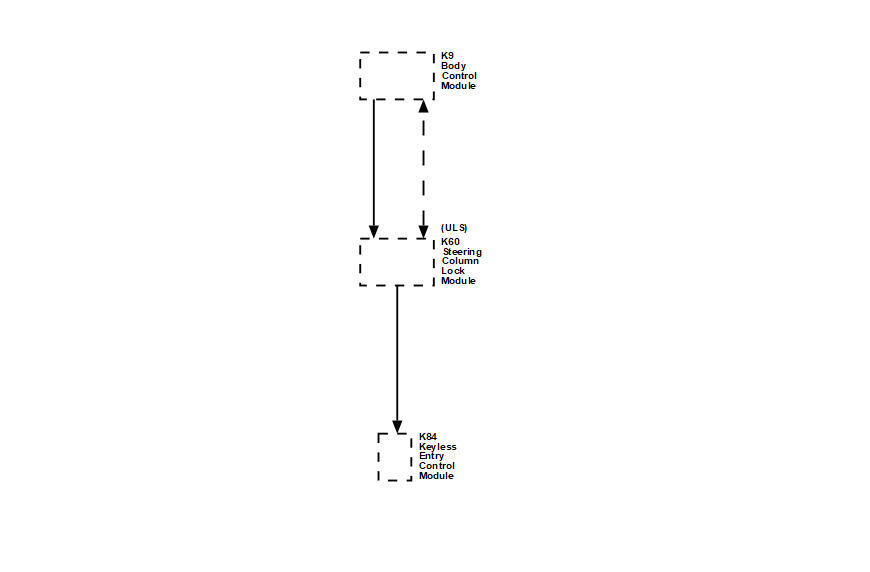

The Steering Column Lock Module (SCLM) controls the steering wheel theft deterrent lock function, which allows the column to be electronically locked. When a valid key is used to start the vehicle, the BCM recognizes this and will send the encrypted password to the SCLM. The SCLM will compare its own stored password to the encrypted password sent by the BCM. If the data matches, the steering column will be unlocked.
In order for the steering column to be locked the SCLM has to see 3 inputs.
- The BCM power mode is OFF.
- The vehicle is stationary based on zero speed reported from all ABS wheel speed sensors.
- The driver or passenger door is opened reported by the PEPS module.
When the SCLM receives these inputs, the steering column will be locked.
The SCLM monitors the column lock system and will set DTC codes when the module detects malfunctions within the system. When a malfunction occurs the driver information center (DIC) will display the Service Column Lock Now message indicating DTC codes are set within the SCLM.
