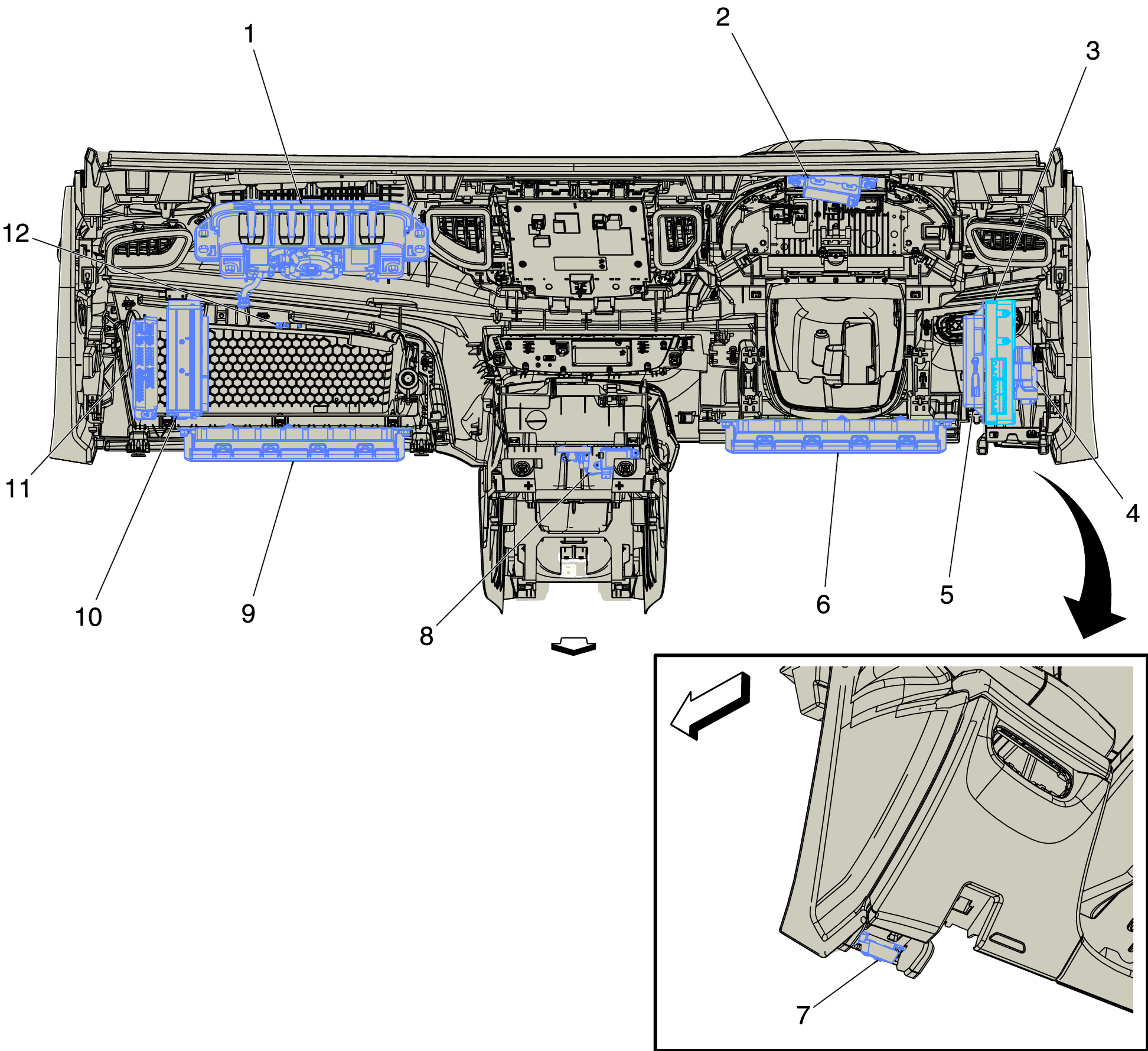

Instrument Panel Rear Components

Courtesy of GENERAL MOTORS COMPANY

Component Name	Callout
F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1 , or F101 Passenger Instrument Panel Air Bag X2	1
P43 Collision Alert Indicators (UEU-UV6) P43 Collision Alert Indicators (-UV6)	2
K73 Telematics Communication Interface Control Module K73 Telematics Communication Interface Control Module X1 (I30)	3
K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 , or K56 Serial Data Gateway Module X2	4
C3 Telematics Communication Interface Control Module Battery C3 Telematics Communication Interface Control Module Battery	5
F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver	6
X84 Data Link Connector X84 Data Link Connector	7
K89 Immobilizer Control Module K89 Immobilizer Control Module	8
F114P Knee Air Bag - Passenger F114P Knee Air Bag - Passenger	9
A11 Radio A11 Radio X11 (IOT/IOS) , or A11 Radio X3 (IOS/IOT) , or A11 Radio X4 (IOR/IOH) , or A11 Radio X4 (IOT/IOS) , or A11 Radio X5 (IOR) , or A11 Radio X6 (IOS/IOT) , or A11 Radio X7 (IOB/IOR) , or A11 Radio X8 (IOR)	10
K74 Human Machine Interface Control Module	11
E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp	12
