K68 Trailer Lighting Control Module
 Courtesy of GENERAL MOTORS COMPANY
|

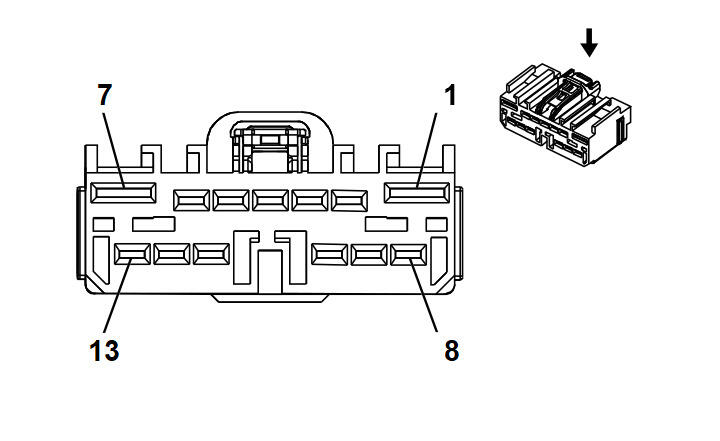

Connector Part Information
- Harness Type: Body
- OEM Connector: 13587884
- Service Connector: 13587884
- Description: 13-Way F 2.8, 6.3 Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13580025 |
J-35616-4A (PU) |
J-38125-11A |
7116-4111-02 |
Yazaki 9 |
E |
A |
| I |
13580025 |
J-35616-4A (PU) |
J-38125-11A |
7116-4111-02 |
Yazaki 9 |
E |
A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
RD/GY |
2140 |
Secondary Fused Battery Positive Voltage 21 |
I |
- |
| 2 |
0.75 |
VT/GN |
139 |
Run/Crank Ignition 1 Voltage 1 |
I |
- |
| 3 |
- |
VT/WH |
5065 |
Stop Lamp Relay Coil Control |
I |
- |
| 4 |
- |
YE/GY |
5187 |
Right Trailer Turn Signal Lamp Control |
I |
- |
| 5 |
- |
GY |
5185 |
Right Trailer Park Lamp Control |
I |
- |
| 6 |
- |
GN |
5060 |
Low Speed GMLAN Serial Data |
I |
- |
| 7 |
- |
BK |
2350 |
Ground 23 |
I |
- |
| 8 |
- |
BN/YE |
5188 |
Trailer Stop Lamp Control |
I |
- |
| 9 |
- |
GN/WH |
5189 |
Trailer Backup Lamp Control |
I |
- |
| 10 - 11 |
- |
- |
- |
Not Occupied |
- |
- |
| 12 |
- |
GN/WH |
5992 |
Trailer Connected Signal |
I |
- |
| 13 |
- |
BU/WH |
5186 |
Left Trailer Turn Signal Lamp Control |
I |
- |
