Power Transfer Unit Heat Shield Removal

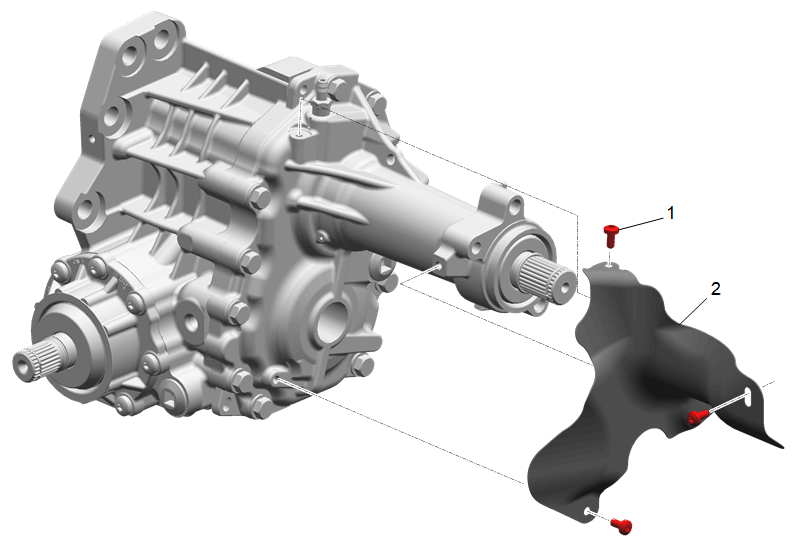

GM4276914Courtesy of GENERAL MOTORS COMPANY
Power Transfer Unit Heat Shield Removal

Callout Component Name
1 Power Transfer Unit Heat Shield Bolt [3x]
2 Power Transfer Unit Heat Shield
