Liftgate Close Switch Replacement

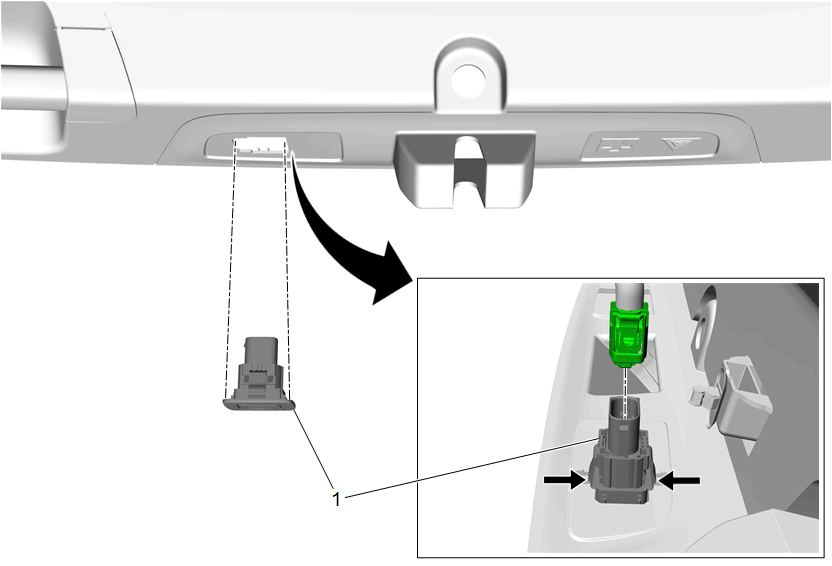

GM4694615Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Liftgate Lower Trim Finish Panel Replacement (Hatchback) , or Liftgate Lower Trim Finish Panel Replacement (5-Door Wagon 35)
1 Liftgate Close Switch

Procedure

  1. Unlock the retaining tabs.
  2. Disconnect the electrical connector.
