Installation Procedure

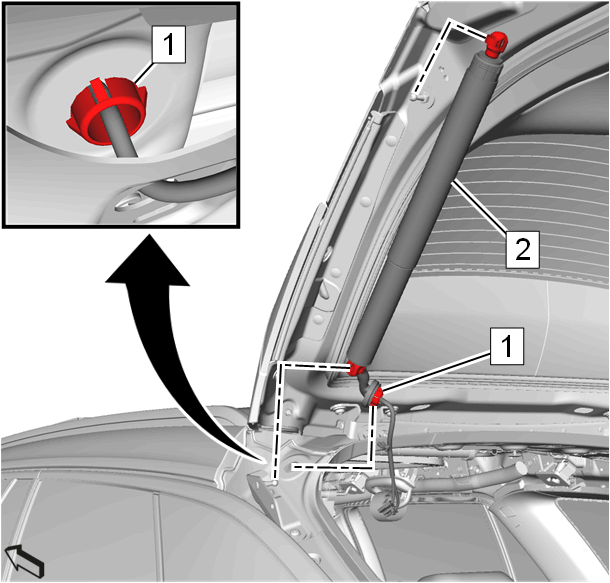

  1. GM4632695Courtesy of GENERAL MOTORS COMPANY

    Liftgate Power Assist Actuator (2) - Install

  2. Install the liftgate power assist actuator retainer (1).

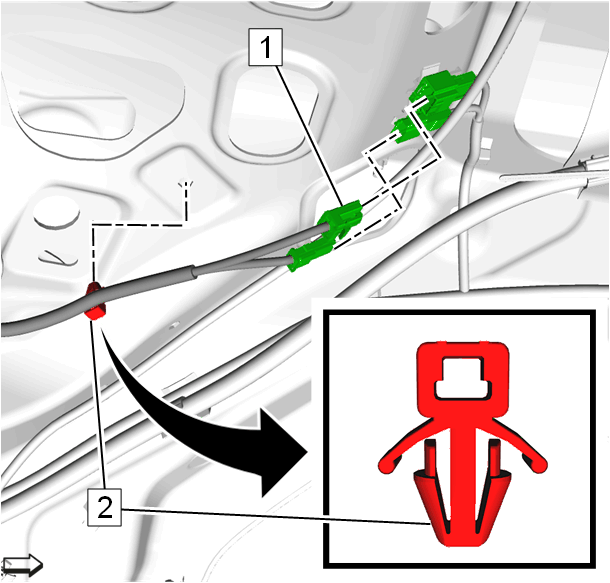

  3. GM4632694Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors. (1)

  4. Install the liftgate power assist actuator cable retainer (2).
  5. Headlining Trim Panel Replacement (Hatchback) , or Headlining Trim Panel Replacement (Wagon) - Install
  6. Liftgate Calibration
