Liftgate Release Switch Replacement

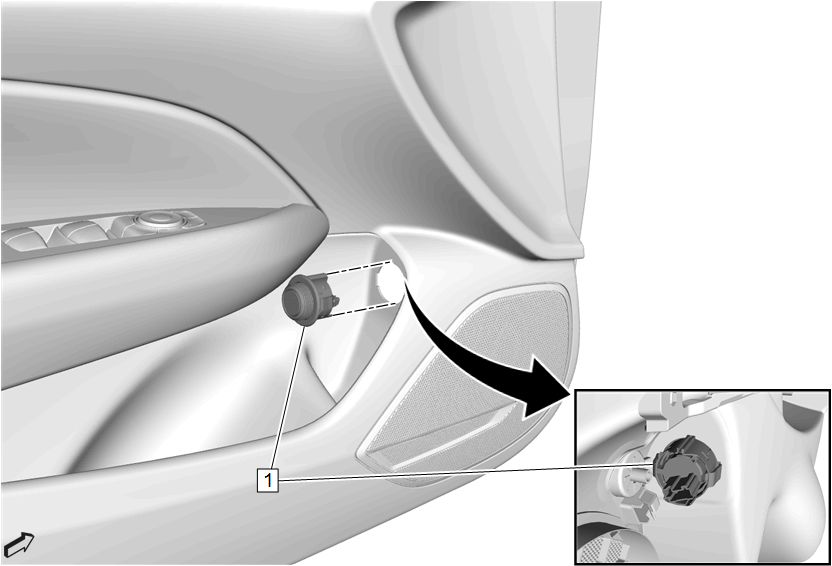

GM4620620Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Side Door Trim Replacement
1 Liftgate Release Switch

Procedure

  1. Unlock the retaining tabs.
  2. Disconnect the electrical connector.
