Liftgate Side Sensor Replacement

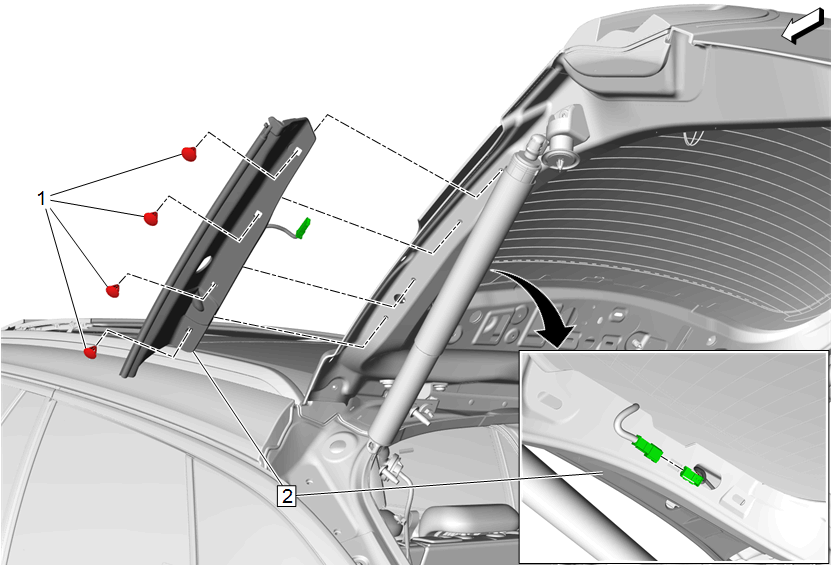

GM4738285Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Liftgate Upper Trim Finish Panel Replacement
1 Liftgate Side Sensor Retainer [4x]
Procedure
Use a flat bladed plastic tool to remove.
2 Liftgate Side Sensor
Procedure
Disconnect the electrical connector.
