Rear Closure Hands Free Module Bracket Replacement

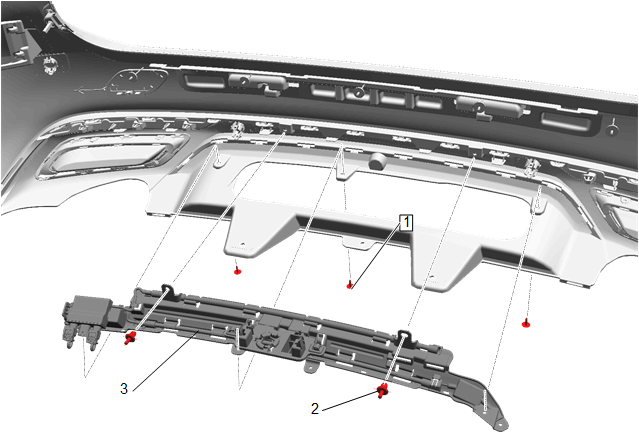

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Bumper Fascia Replacement (5-Door Hatchback 68) , or Rear Bumper Fascia Replacement (5-Door Wagon 35) |
|
| 1 | Rear Closure Hands Free Module Bracket Bolt [3x]
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Rear Closure Hands Free Module Bracket Retainer [2x] |
| 3 | Rear Closure Hands Free Module Bracket Procedure
|
