Rear Seat Heater Control Module Replacement

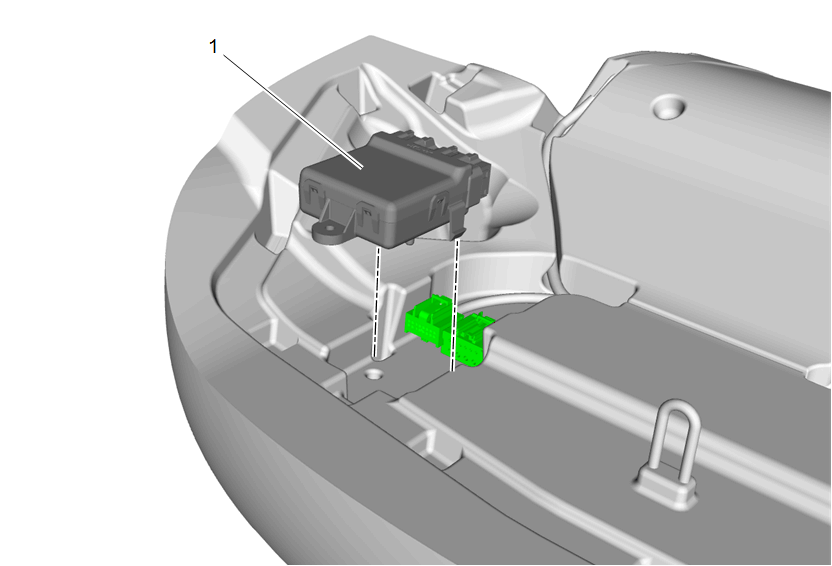

GM4629172Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Seat Cushion Removal and Installation
1 Rear Seat Heater Control Module

Procedure

  1. Unlock the retaining tabs.
  2. Disconnect the electrical connectors.
