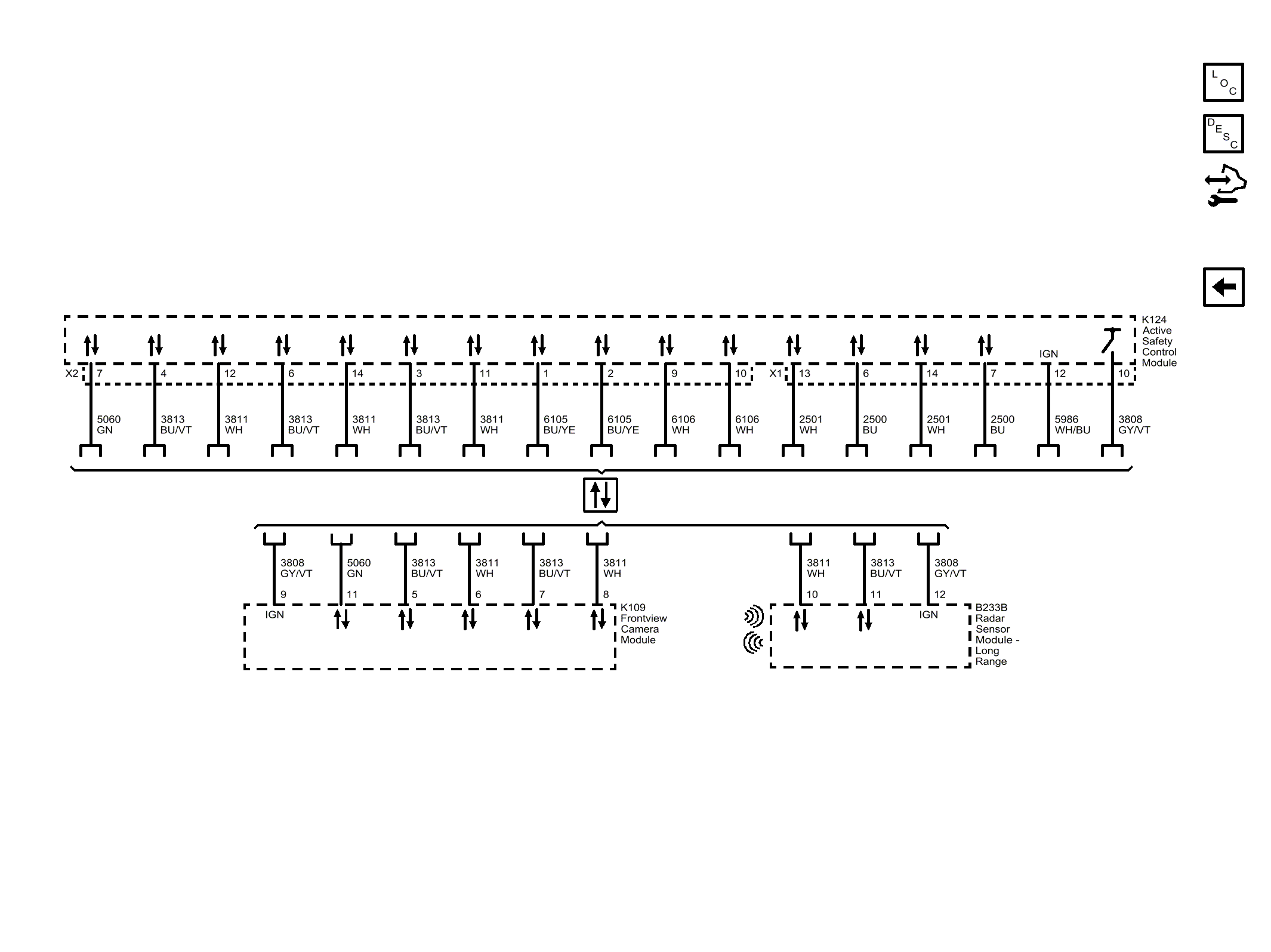

Collision Avoidance - Serial Data Camera, Module and Long Range Radar (UGN)

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
GM4776595
