Installation Procedure
- WARNING:
Before installing the steering column lock control module to the steering column, ensure that no fasteners or debris fall into the column. If fasteners or debris fall into the column, it will cause binding of the steering system, which may result in bodily injury or death.

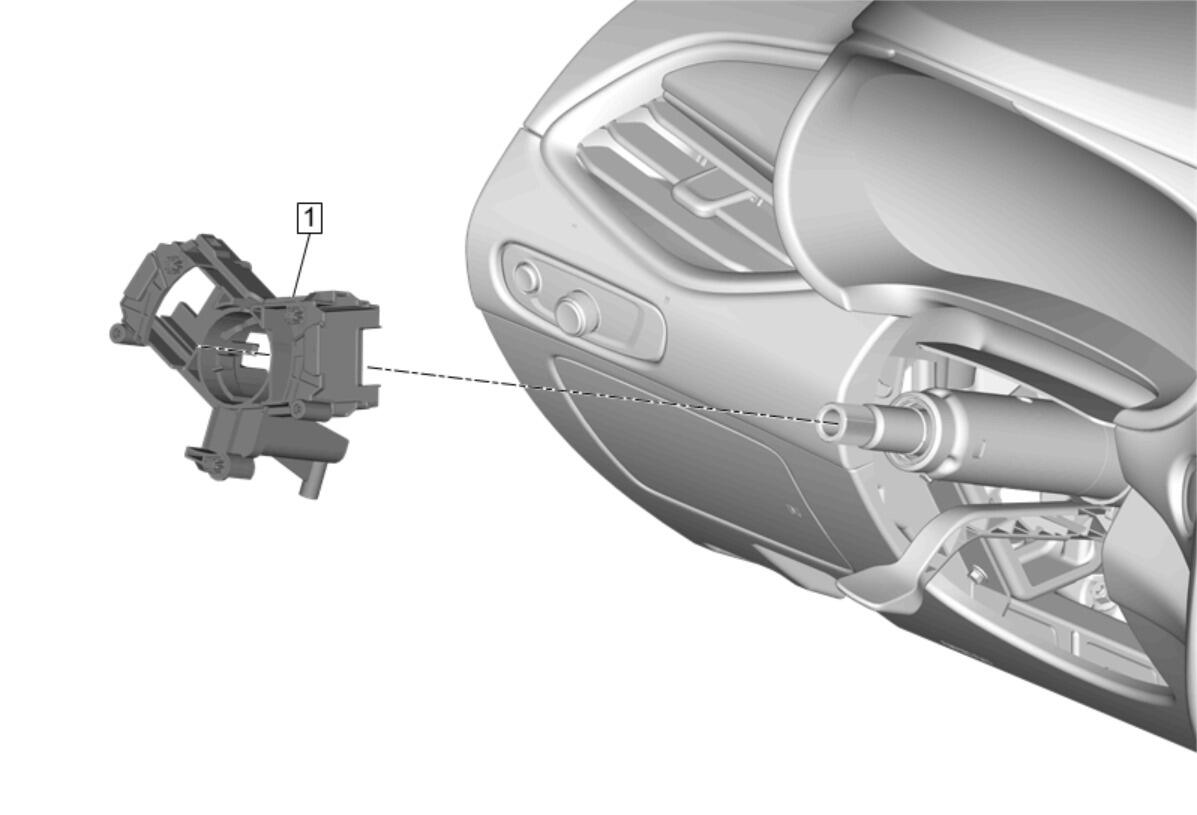

Steering Column Lock Control Module (3) - Install - Column Lock Module Replacement

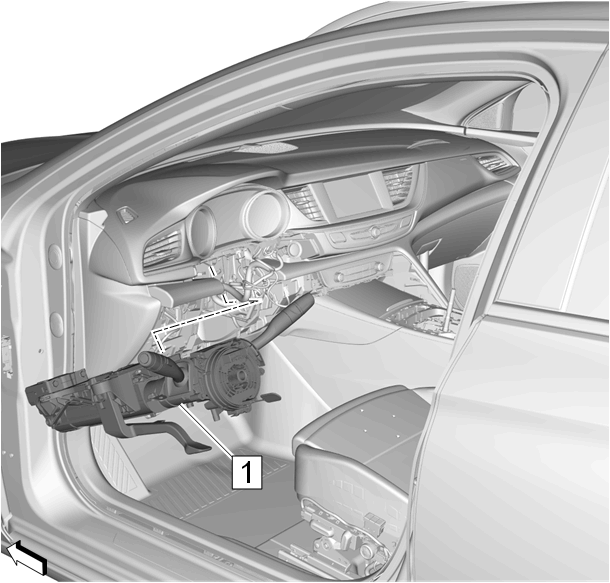

Steering Column (1) - Install

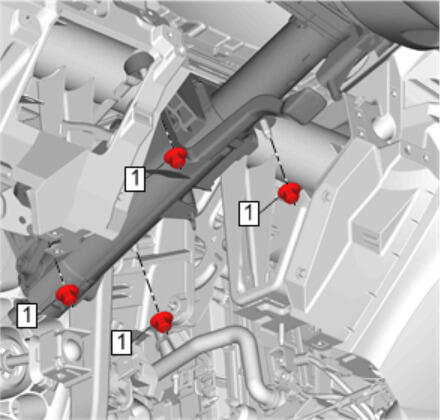

Steering Column Nut (1) - Install, but do NOT tighten [4x] - Use NEW nuts.
-
CAUTION:

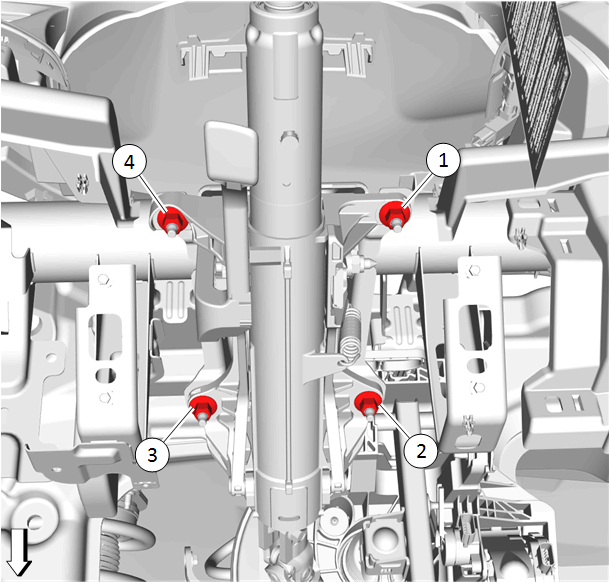

Steering Column Nut (1) - Tighten in sequence [4x] 22 N.m (16 lb ft)
- Connect the steering column electrical connectors.

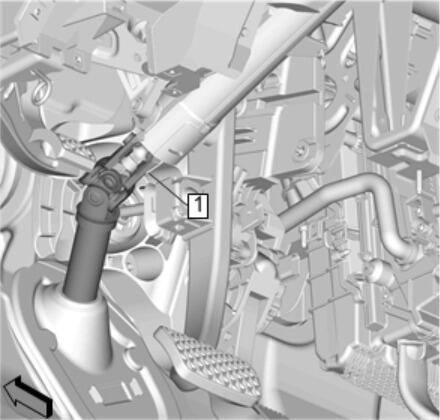

Upper Intermediate Steering Shaft (1) @ Steering Column - Install - Upper Intermediate Steering Shaft Replacement

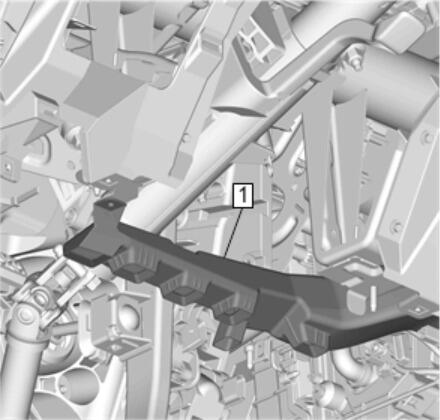

Floor Front Air Outlet Duct - Left Side (1) - Install - Floor Front Air Outlet Duct Replacement - Left Side
Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement
Turn Signal Switch Bracket (1) - Install NEW - Turn Signal Switch Bracket Replacement

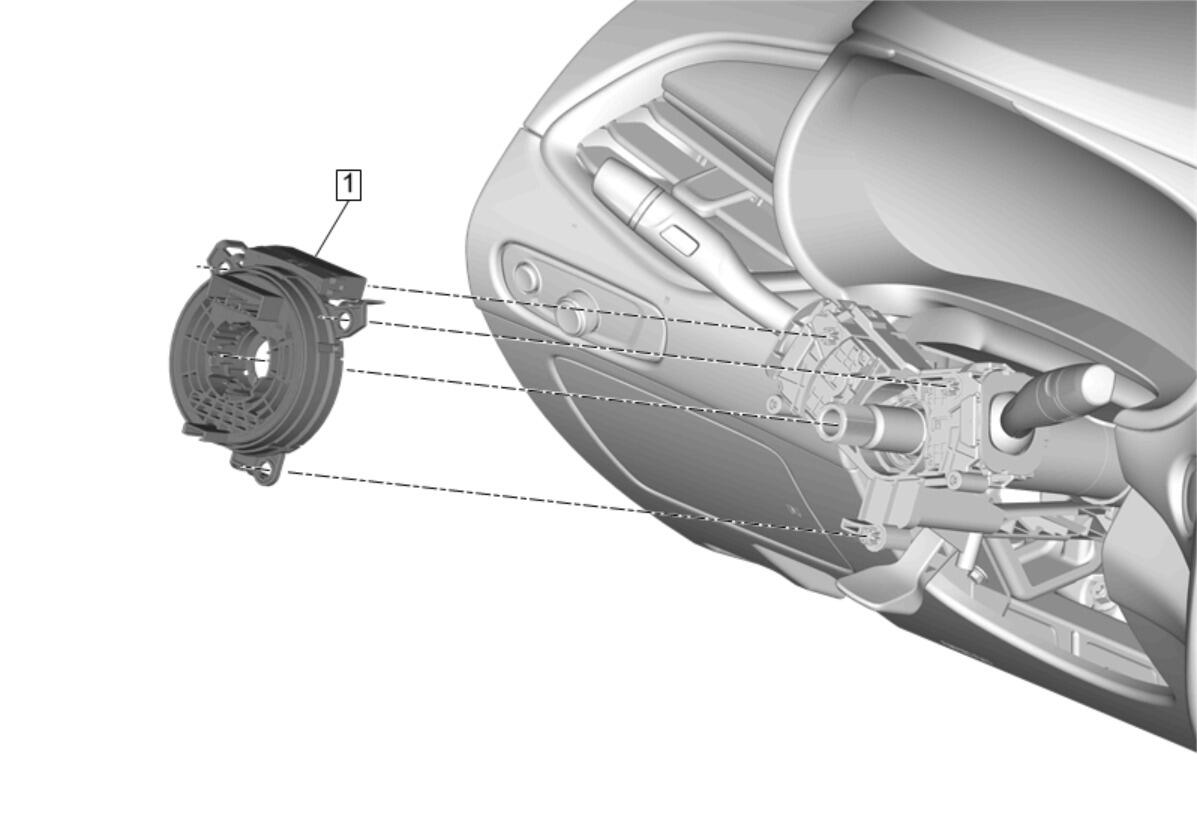

Steering Wheel Airbag Coil (1) - Install - Steering Wheel Airbag Coil Replacement

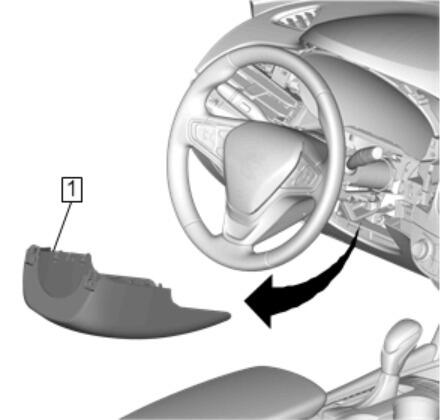

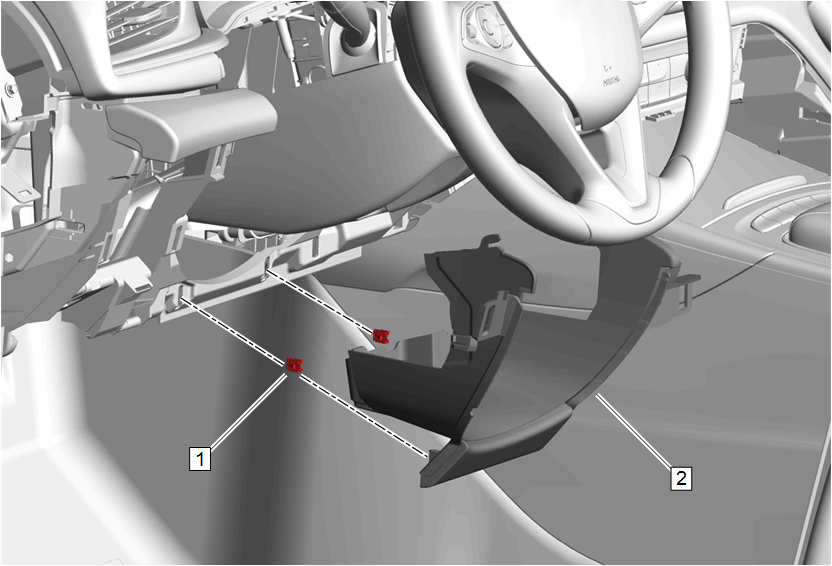

Steering Column Lower Trim Cover (1) - Install - Steering Column Lower Trim Cover Replacement

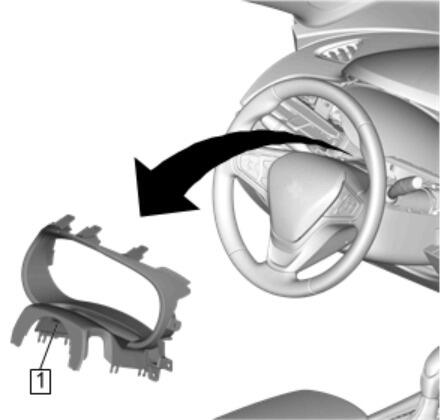

Steering Column Upper Trim Cover (1) - Install - Steering Column Upper Trim Cover Replacement

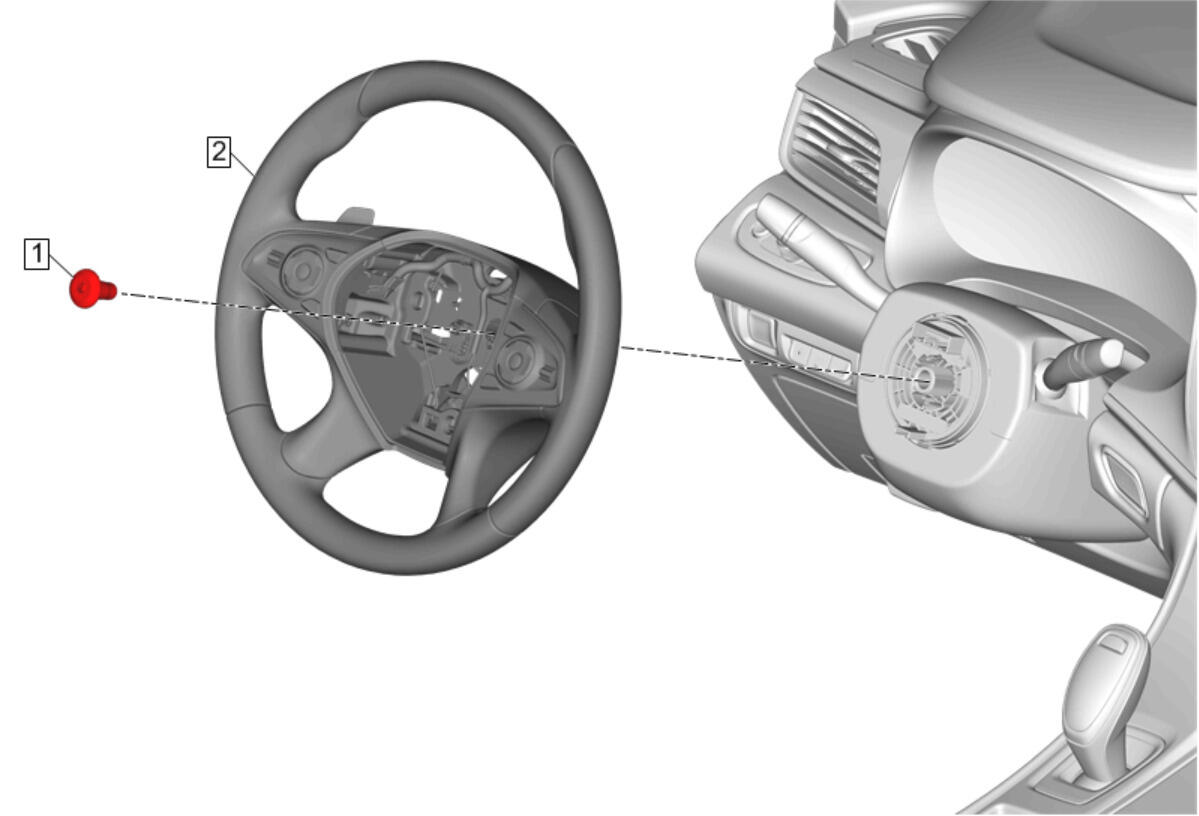

Steering Wheel - Install - Steering Wheel Replacement
- Enable the SIR System. SIR Disabling and Enabling
- F23 Fuse @ X51A Fuse Block - Instrument Panel - Install
- Center the steering angle sensor. Steering Wheel Angle Sensor Centering
Steering Column Lock Control Module Fuse
