Driver Assistance Systems Wiring Schematics (Buick)
>>
Side Object Detection (Buick with UFT)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

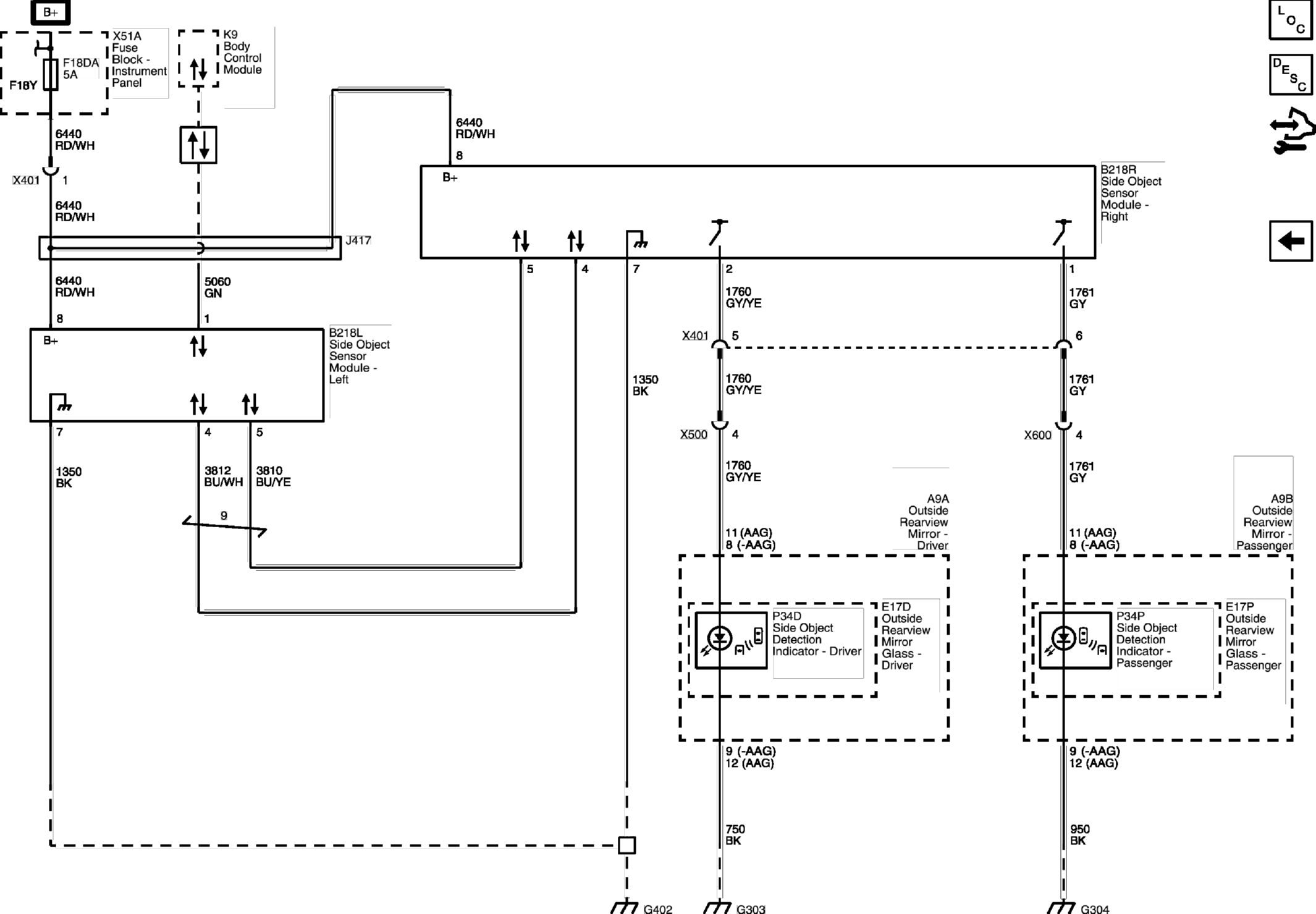

Side Object Detection (Buick with UFT)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
