K73 Telematics Communication Interface Control Module X5 (-UDA)
WARNING: This page is about a different car, the 2020 Chevrolet Trax. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

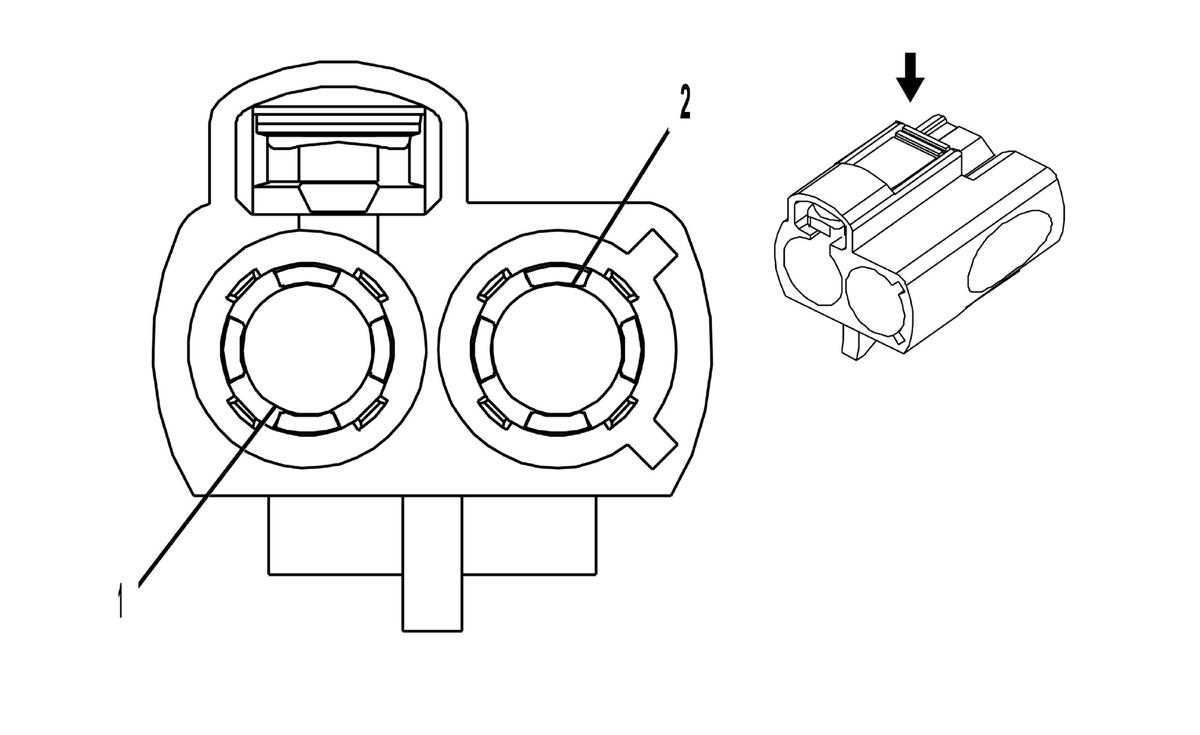

Connector Part Information
- Harness Type: Instrument Panel COAX
- OEM Connector: 3FAH-NDSJ-C04W6
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 2-Way F Coax Type (PU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| - |
- |
Coax |
- |
(XM +/-HD) Coaxial Antenna XM Signal |
I |
- |
