Headlamp LED Driver Module Replacement

WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

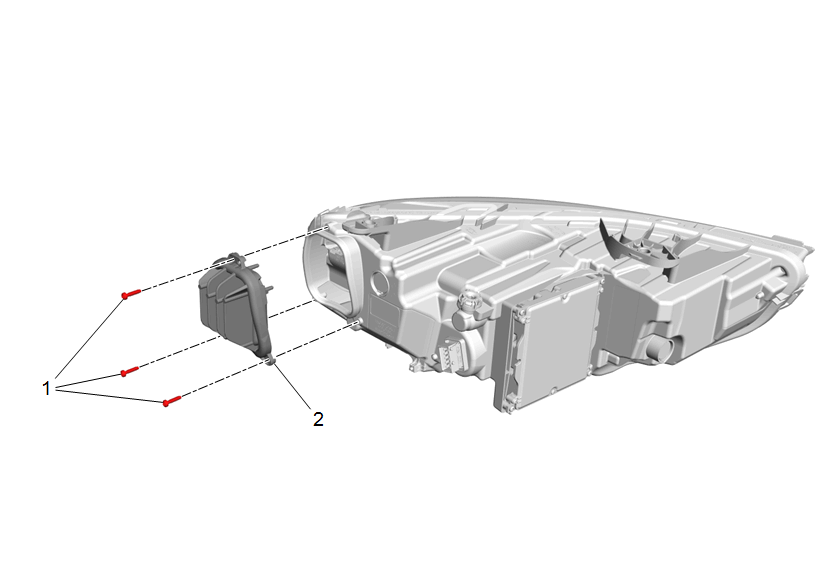

Callout	Component Name
Preliminary Procedure Front Headlamp Replacement
1	Headlamp LED Driver Module Screw [3x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Headlamp LED Driver Module Procedure Disconnect the electrical connector. After installation, aim the front headlamps. Front Headlamp Aiming

Callout

Component Name

Preliminary Procedure
Front Headlamp Replacement

Headlamp LED Driver Module Screw [3x]

CAUTION:

Fastener Caution

Tighten
2.5 N.m (22 lb in)

Headlamp LED Driver Module

Procedure

Disconnect the electrical connector.
After installation, aim the front headlamps. Front Headlamp Aiming
