K134D Seat Bolster Memory Control Module - Driver (AF6)
WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

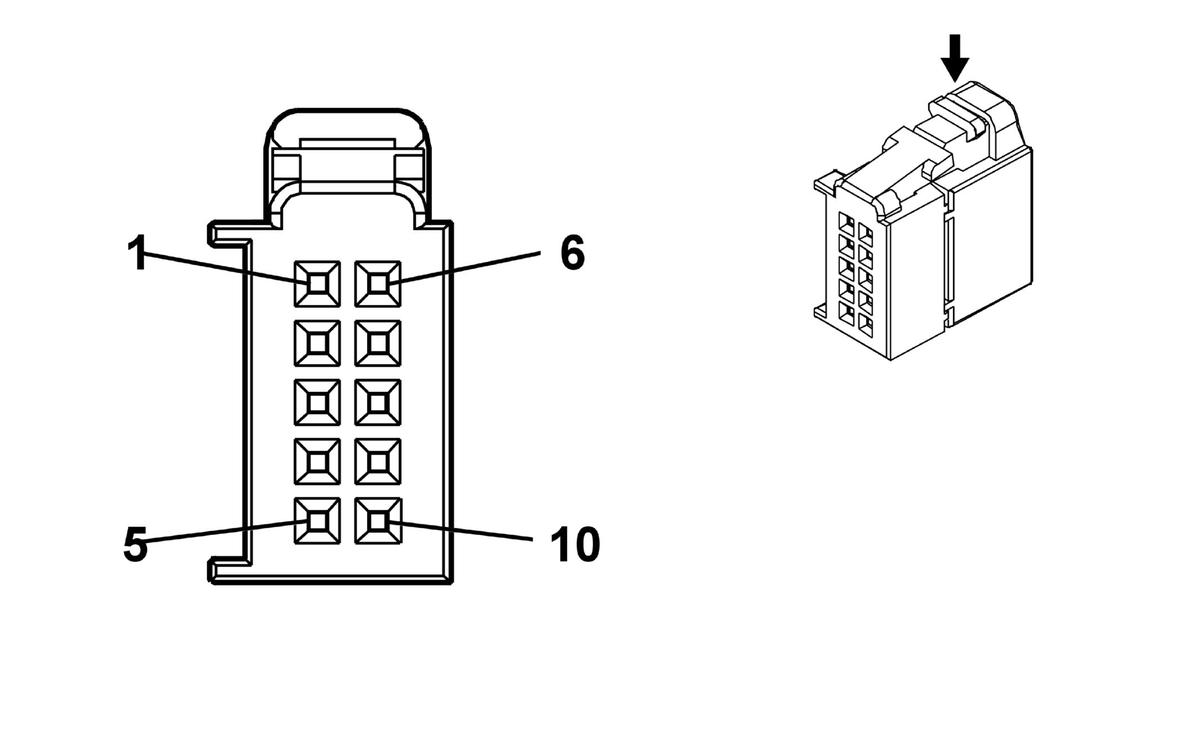

Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 1-1670990-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 10-Way F 0.64 MQS Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
WH/BU |
940 |
Battery Positive Voltage |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.75 |
BK |
2150 |
Ground 21 |
I |
- |
| 4 - 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.75 |
WH/BU |
4891 |
Driver Seat Lumbar/Bolster Pump Control |
I |
- |
| 8 |
0.35 |
GN/GY |
3758 |
Driver Seat Memory Control Module LIN Bus 2 |
I |
- |
| 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.75 |
BK |
2050 |
Ground 20 |
I |
- |
