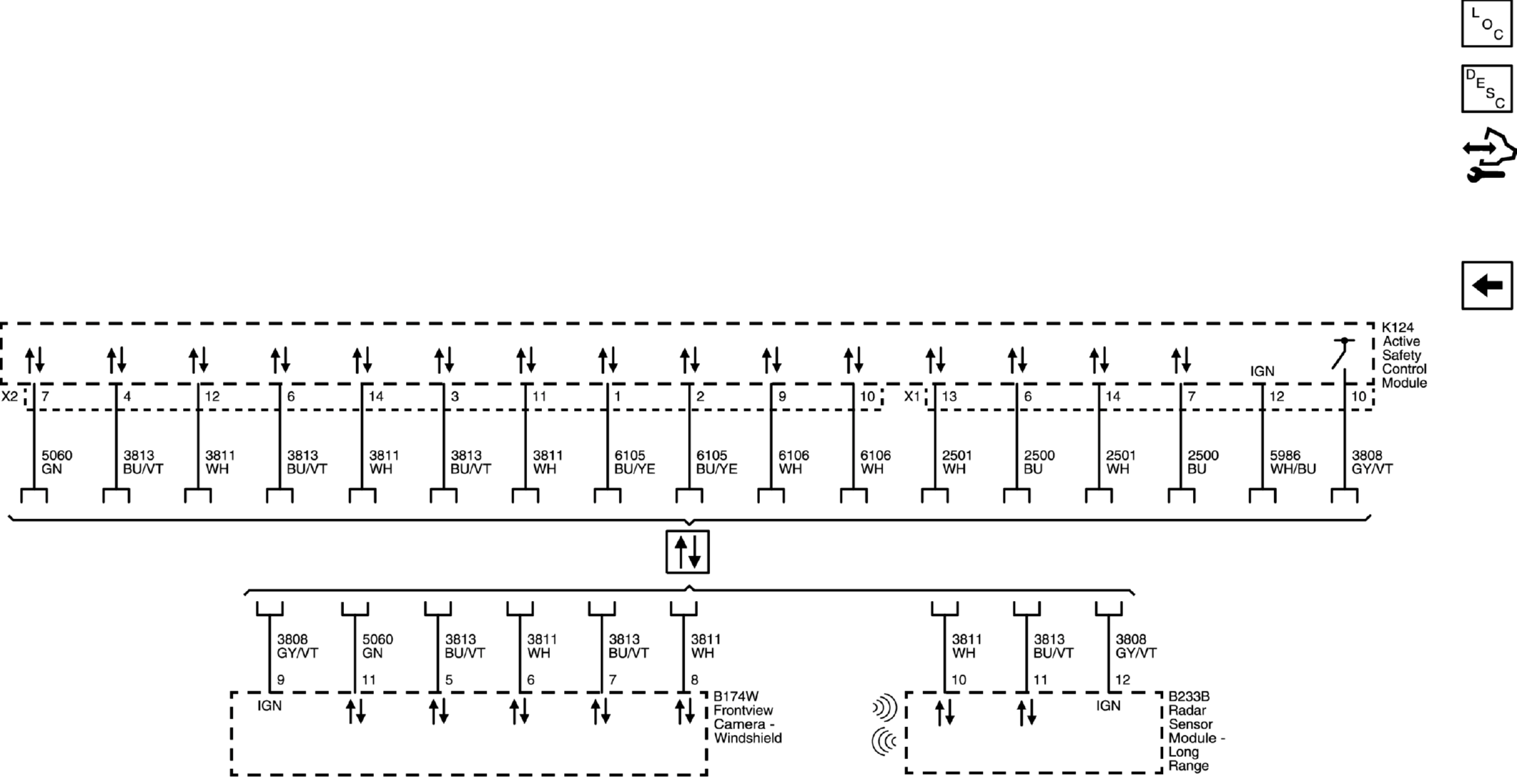

Collision Avoidance - Serial Data Camera, Module and Long Range Radar (UGN)

WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
GM5209669Courtesy of GENERAL MOTORS COMPANY
