B233B Radar Sensor Module - Long Range
WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

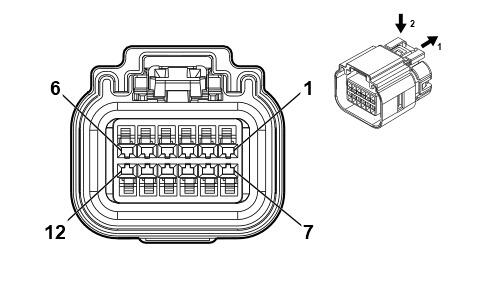

Connector Part Information
- Harness Type: Body
- OEM Connector: 13593495
- Service Connector: 19300889
- Description: 12-Way F 1.2 OCS Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
19370818 |
J-35616-16 (LT GN) |
J-38125-215A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.75 |
RD/GN |
5140 |
Secondary Fused Battery Positive Voltage 51 |
I |
- |
| 7 |
0.75 |
BK/WH |
3051 |
Ground 30 |
I |
- |
| 8 - 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.5 |
WH |
3811 |
High Speed GMLAN Serial Data [-] 4 |
I |
- |
| 11 |
0.5 |
BU/VT |
3813 |
High Speed GMLAN Serial Data [+] 4 |
I |
- |
| 12 |
0.75 |
GY/VT |
3808 |
Front Object Sensor 2 Reference Voltage |
I |
- |
