Headlamp Control Module Replacement (T4L without T95 and UVG)

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

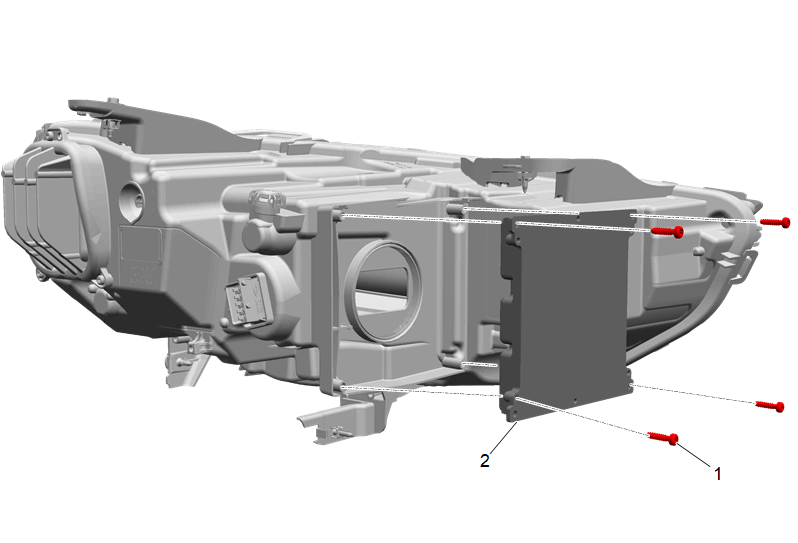

Callout	Component Name
Preliminary Procedure Headlamp Replacement
1	Headlamp LED Driver Module Bolt [3x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Headlamp Control Module Procedure Disconnect the electrical connectors. Run all necessary programming and setup procedure. Control Module References

Callout

Component Name

Preliminary Procedure
Headlamp Replacement

Headlamp LED Driver Module Bolt [3x]

CAUTION:

Fastener Caution

Tighten
2.5 N.m (22 lb in)

Headlamp Control Module

Procedure

Disconnect the electrical connectors.
Run all necessary programming and setup procedure. Control Module References
