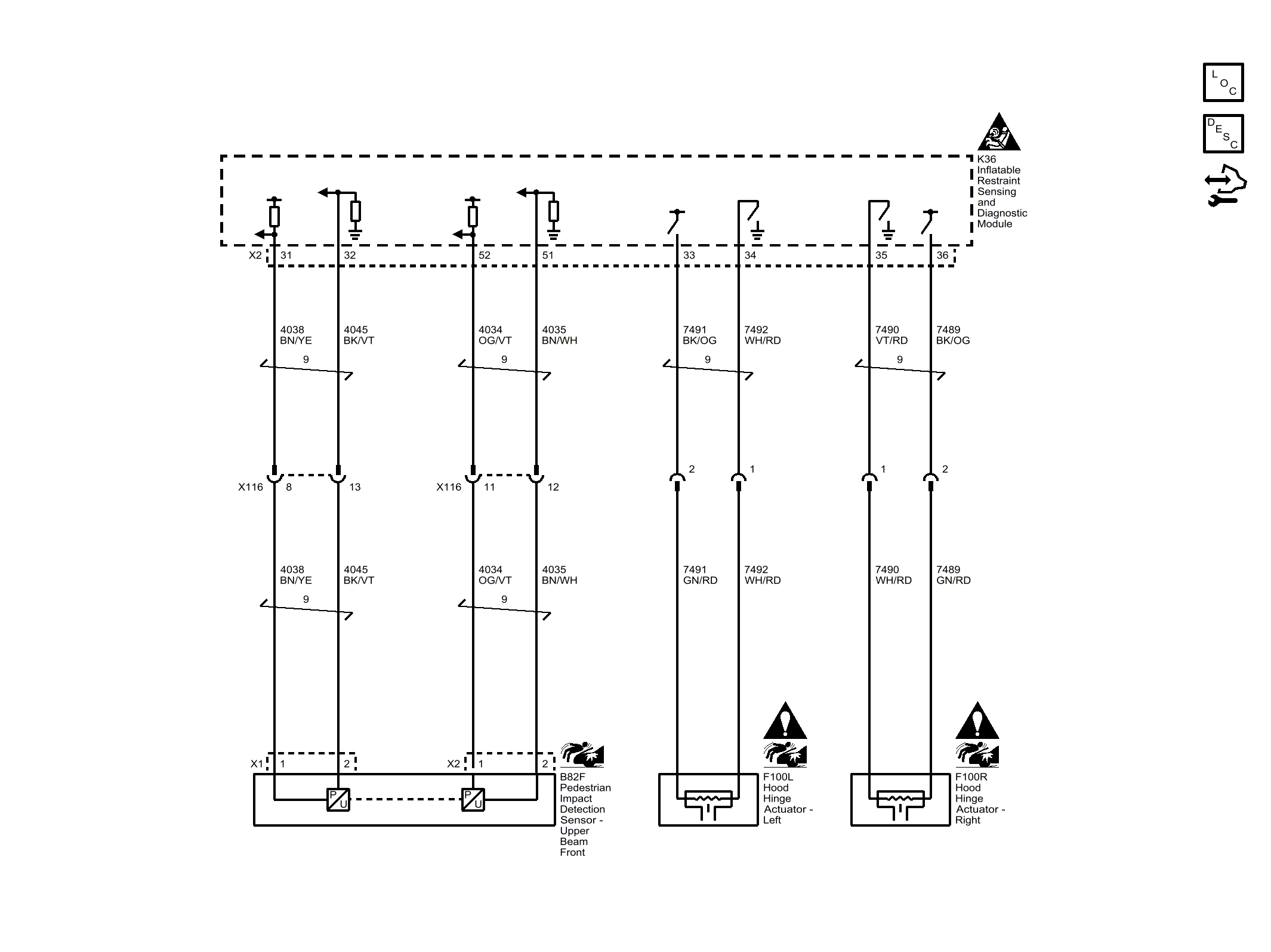

Pedestrian Impact Detection System (B3T)

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
GM4776608Courtesy of GENERAL MOTORS COMPANY
