Radio/Navigation System Wiring Schematics
>>
Infotainment Faceplate Control Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

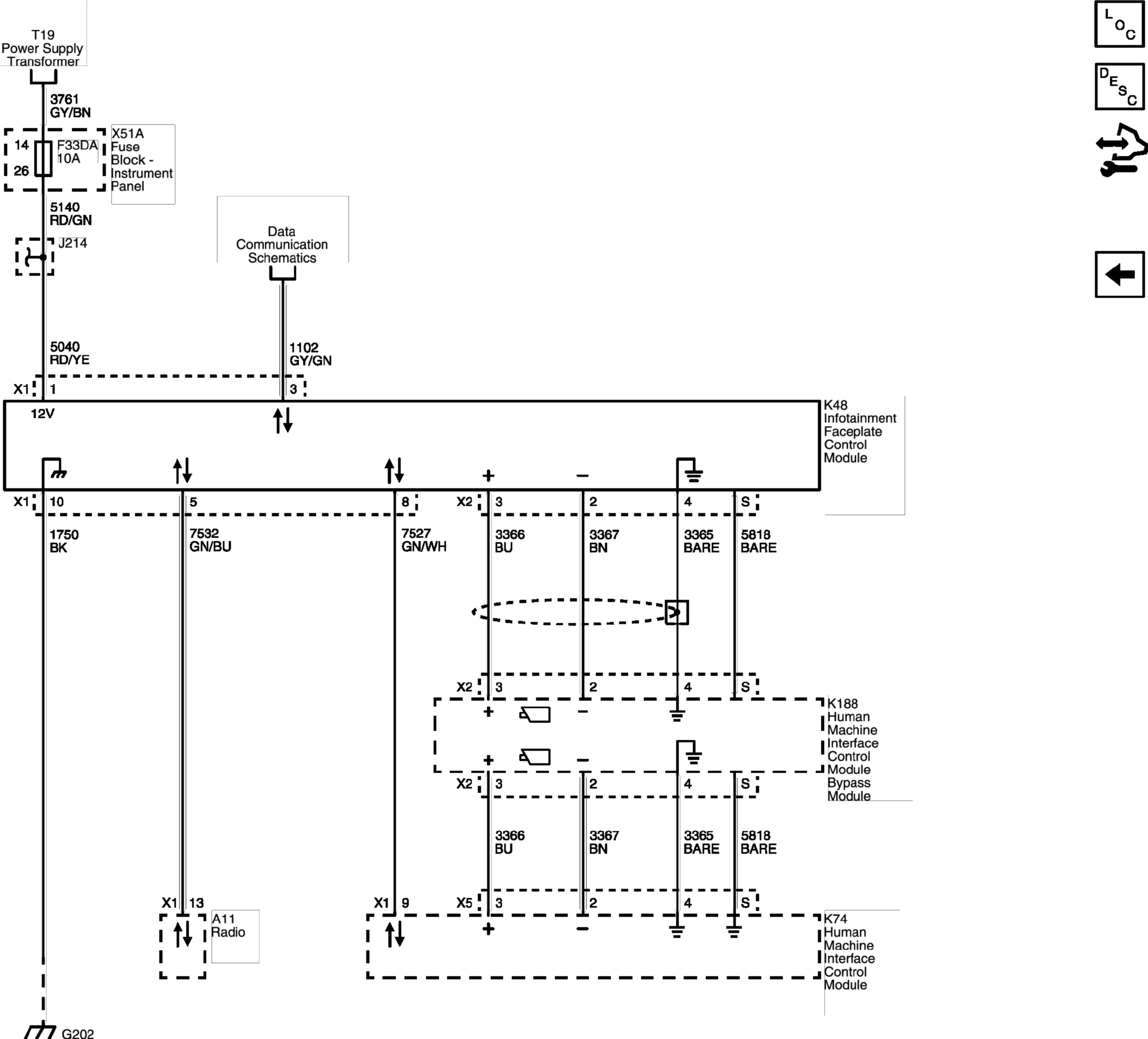

Infotainment Faceplate Control Module
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
