Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

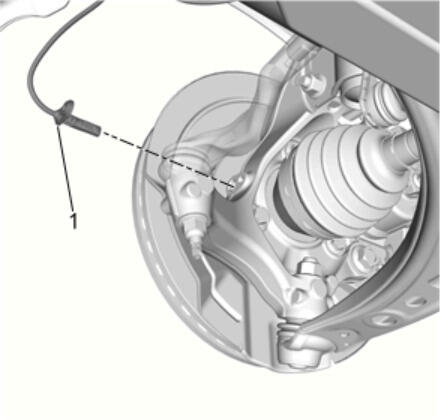

Wheel Speed Sensor (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

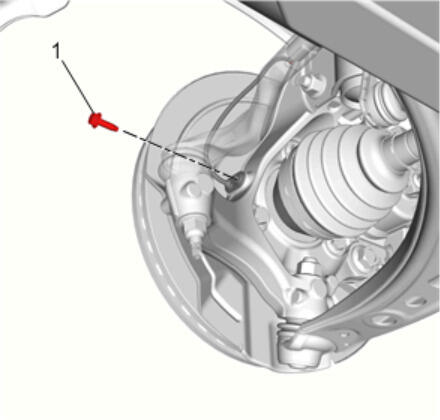

Wheel Speed Sensor Bolt (1) - Install and tighten 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

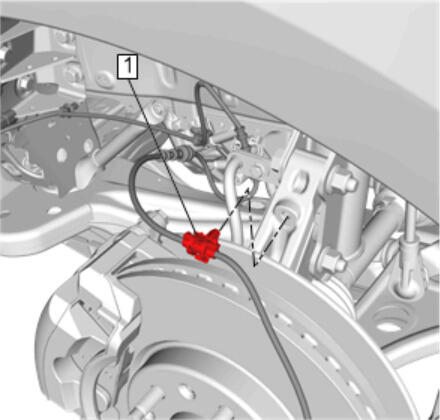

Retainer (1) @ Steering Knuckle - Secure
Courtesy of GENERAL MOTORS COMPANY

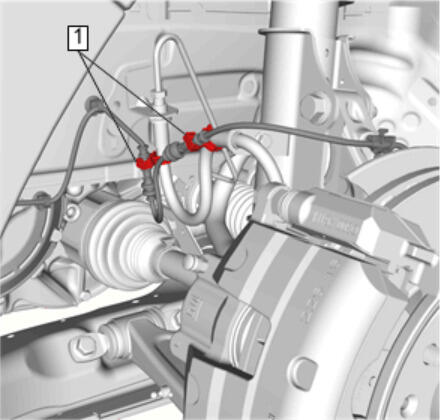

Retainer (1) @ Front Brake Hose - Secure [2x]
Courtesy of GENERAL MOTORS COMPANY

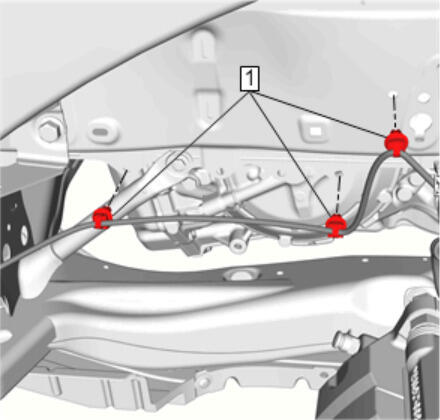

Retainer (1) @ Side Rail - Secure [3x]
Courtesy of GENERAL MOTORS COMPANY

Retainer (1) @ Radiator Support - Secure

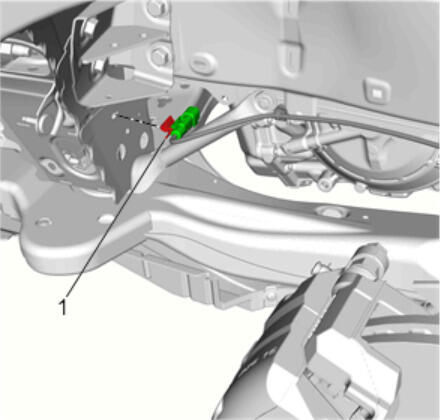

Wheel Speed Sensor Electrical Connector - Connect
Front Wheelhouse Liner - Install - Front Wheelhouse Liner Replacement (LGX) , or Front Wheelhouse Liner Replacement (LTG)
Verify the repair is complete. Diagnostic Repair Verification
