Installation Procedure

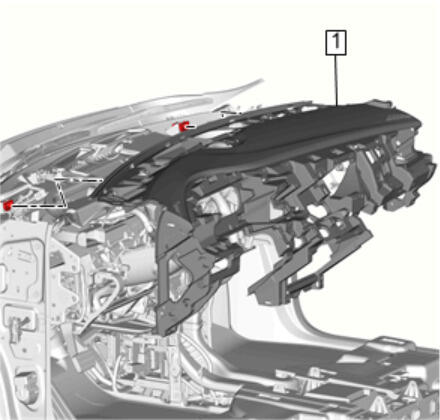

  1. GM4820243Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the instrument panel (1) to the instrument panel tie bar and the locator pins.

  2. Reposition the instrument panel wiring harness into the vehicle position as was noted in the removal and connect the fasteners securing the instrument panel wiring harness to the instrument panel (1).

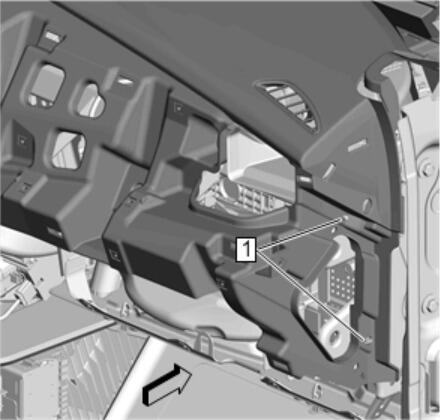

  3. GM4820241Courtesy of GENERAL MOTORS COMPANY

    Make sure the locator stud and tie bar bracket tab (1) are seated.

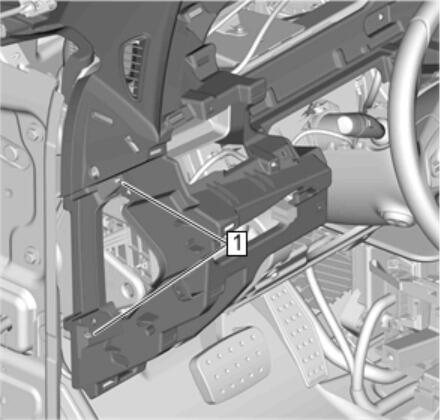

  4. GM4820240Courtesy of GENERAL MOTORS COMPANY

    Make sure the locator stud and tie bar bracket tab (1) are seated.

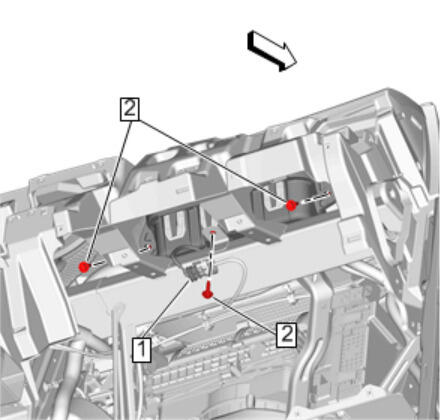

  5. GM4820239Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Airbag Bolt (2) - Install and tighten [ 3x ] 9 N.m (80 lb/in)

  6. Connect the instrument panel airbag electrical connector to the instrument panel harness. (1)

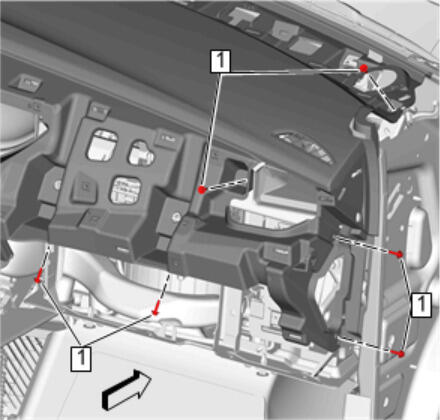

  7. GM4820238Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten [ 6x ] 2.5 N.m (22 lb/in)

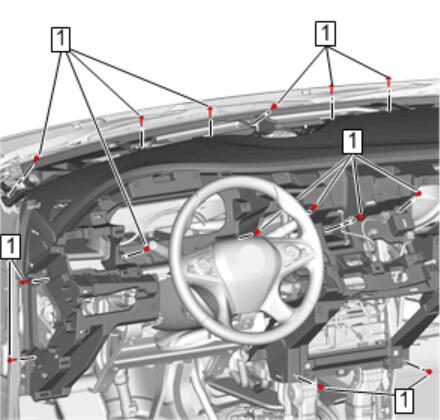

  8. GM4820237Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten [ 15x ] 2.5 N.m (22 lb/in)

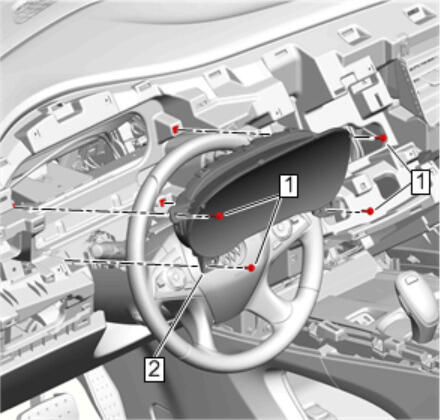

  9. GM4808130Courtesy of GENERAL MOTORS COMPANY

    Instrument Cluster (2) - Install - Instrument Cluster Replacement

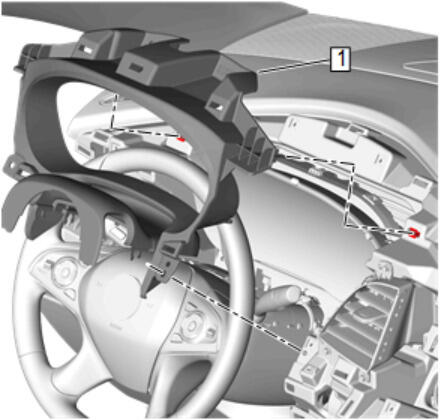

  10. GM4803347Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (1) - Install - Instrument Panel Cluster Trim Plate Replacement

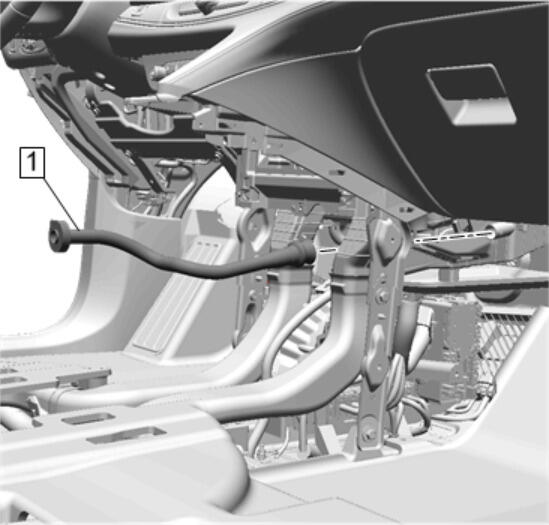

  11. GM4818277Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Auxiliary Cooling Intermediate Duct (1) - Install - Front Floor Console Auxiliary Cooling Intermediate Duct Replacement

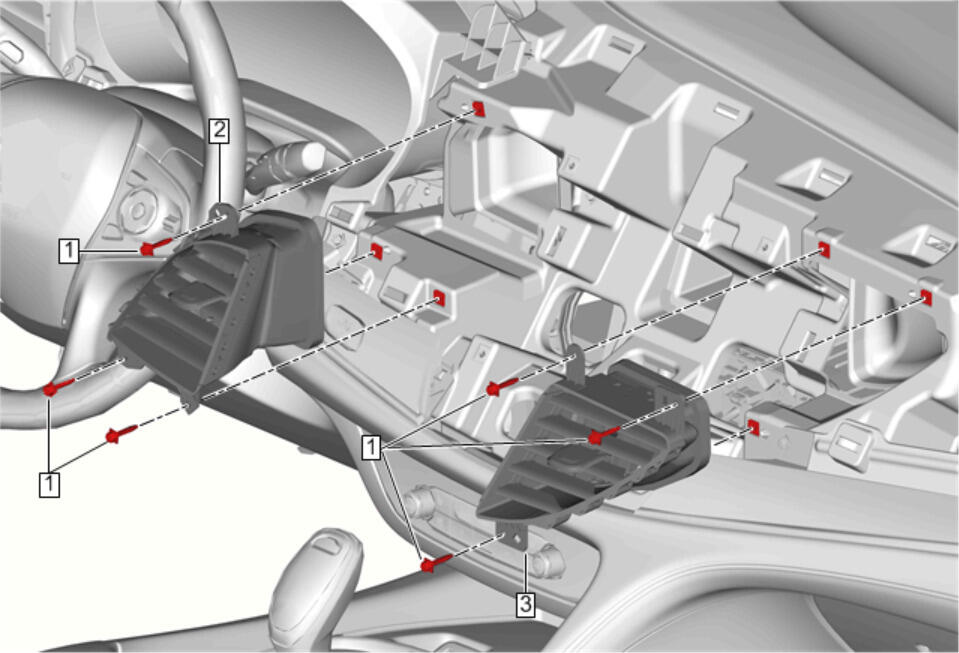

  12. GM4784624Courtesy of GENERAL MOTORS COMPANY

    Install the left (2) and right instrument panel center air outlet (3). Instrument Panel Center Air Outlet Replacement

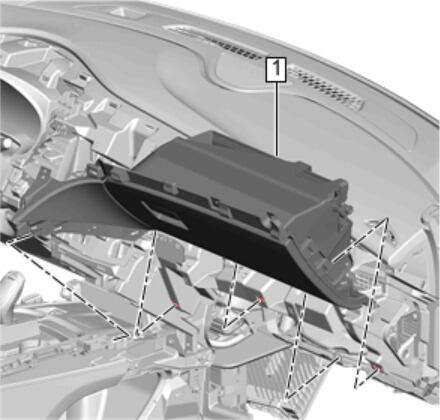

  13. GM4794599Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment (1) - Install - Instrument Panel Compartment Replacement

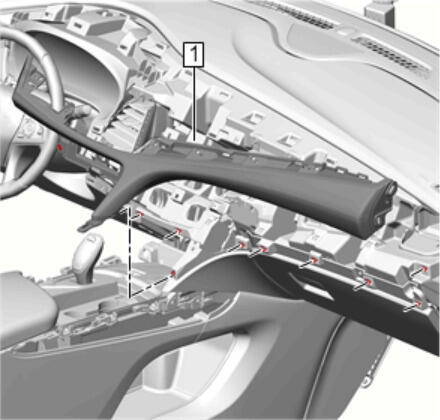

  14. GM4787680Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Right Side (1) - Install - Instrument Panel Trim Pad Replacement - Right Side

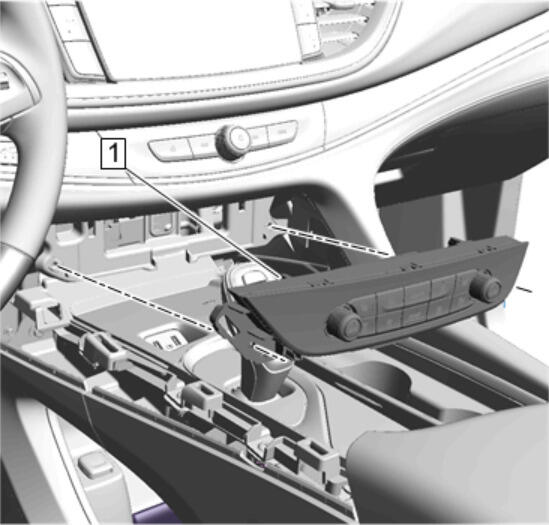

  15. GM4805377Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning User Interface Control (1) - Install - Heater and Air Conditioning User Interface Control Replacement

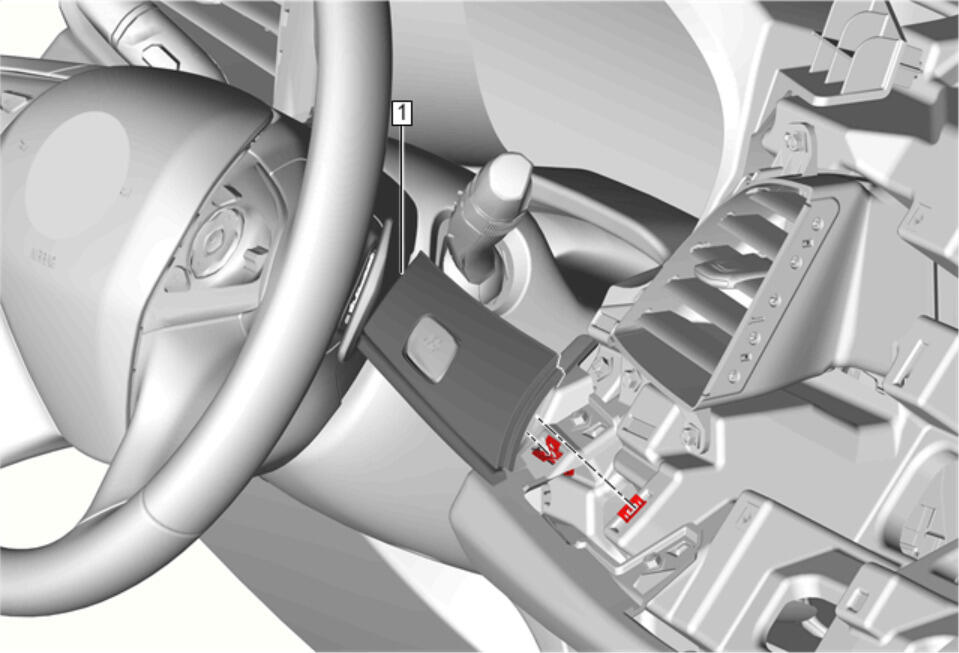

  16. GM4784215Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Plate Applique (1) - Install - Instrument Panel Center Trim Plate Applique Replacement

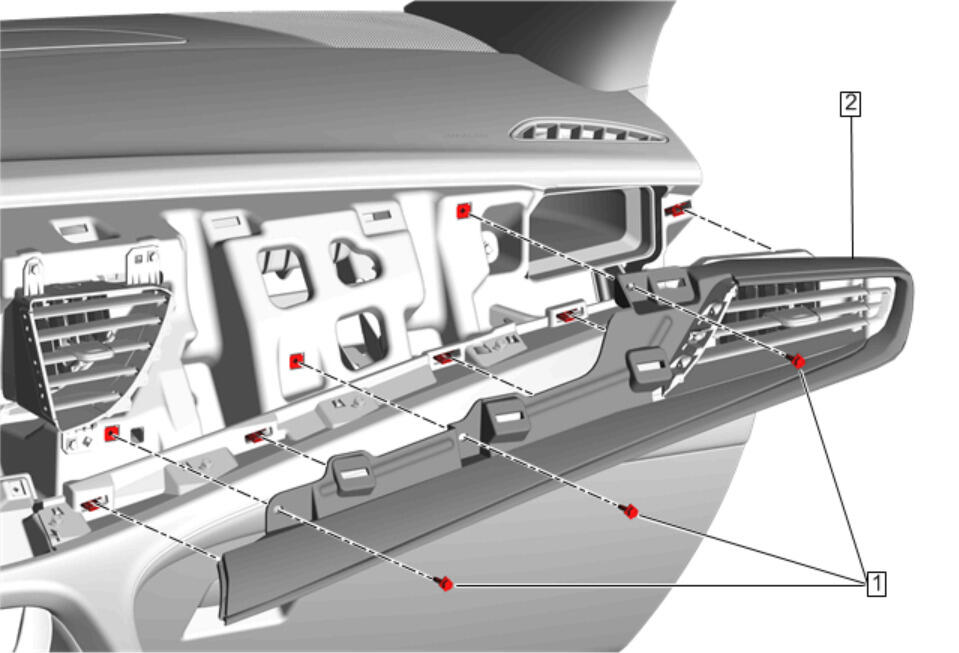

  17. GM4784111Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique - Right Side (2) - Install - Instrument Panel Trim Plate Applique Replacement - Right Side

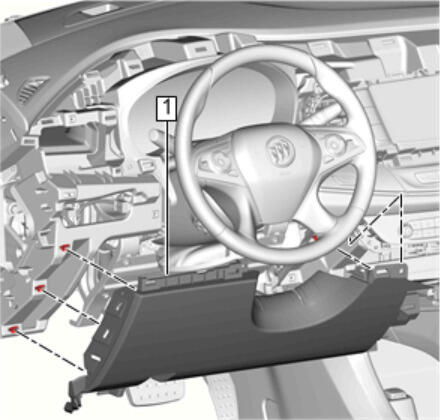

  18. GM4805065Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement

  19. Install the left front side door sill garnish molding. Front Side Door Sill Garnish Molding Replacement

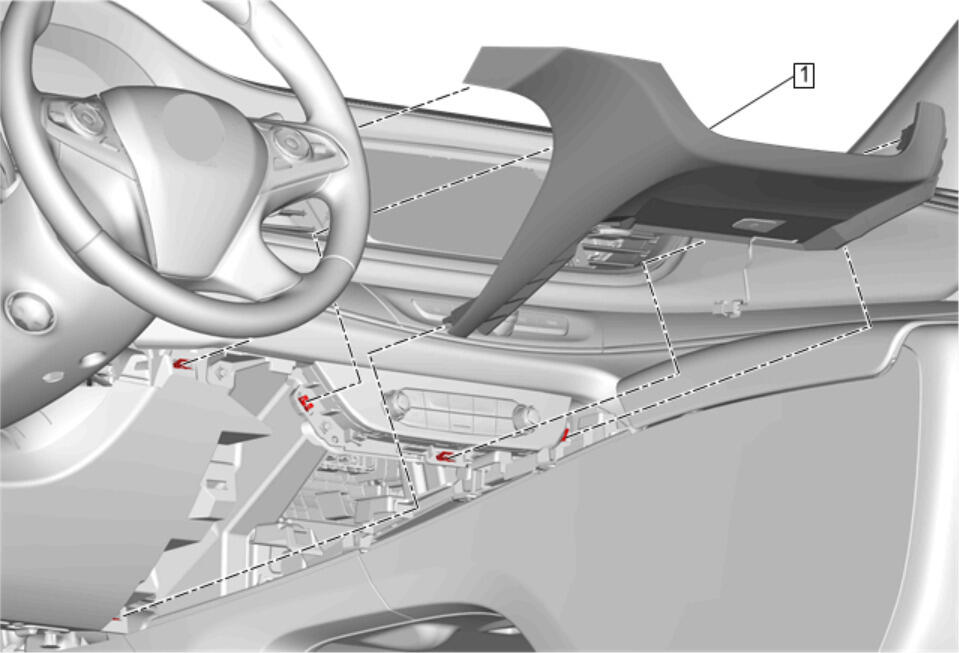

  20. GM4787138Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel (1) - Install - Instrument Panel Lower Trim Panel Replacement

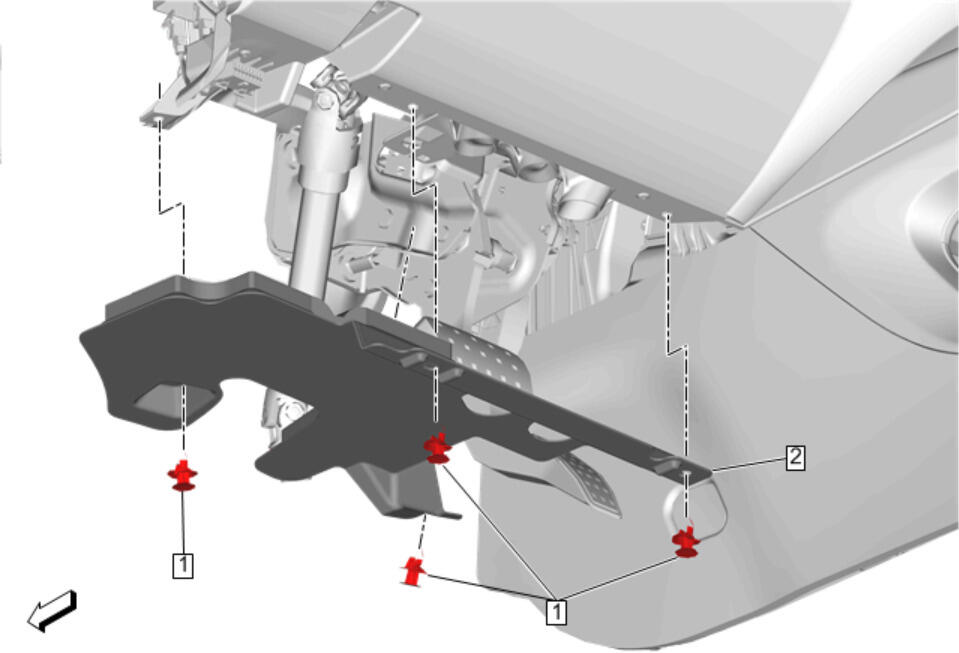

  21. GM4781916Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator - Left Side (2) - Install - Instrument Panel Lower Trim Panel Insulator Replacement - Left Side

  22. GM4708585Courtesy of GENERAL MOTORS COMPANY

    Hood Primary Latch Release Cable Handle (1) - Install - Hood Primary Latch Release Cable Handle Replacement

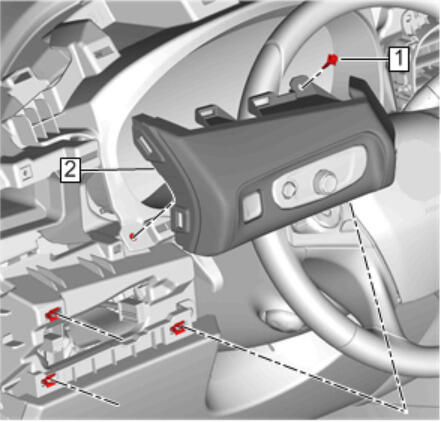

  23. GM4791277Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Left Side (2) - Install - Instrument Panel Trim Pad Replacement - Left Side

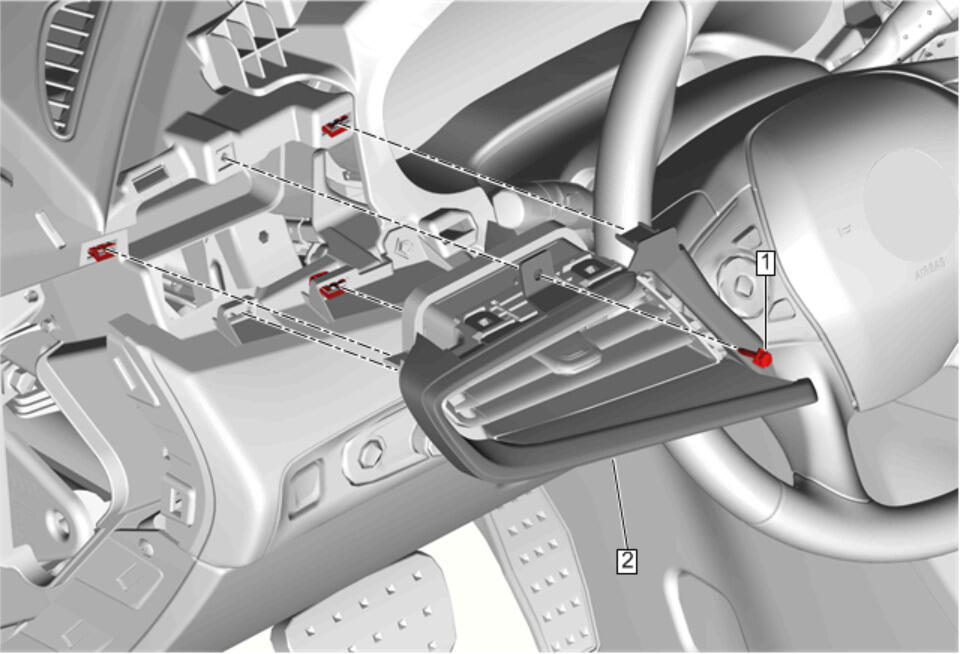

  24. GM4784805Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique - Left Side (2) - Install - Instrument Panel Trim Plate Applique Replacement - Left Side

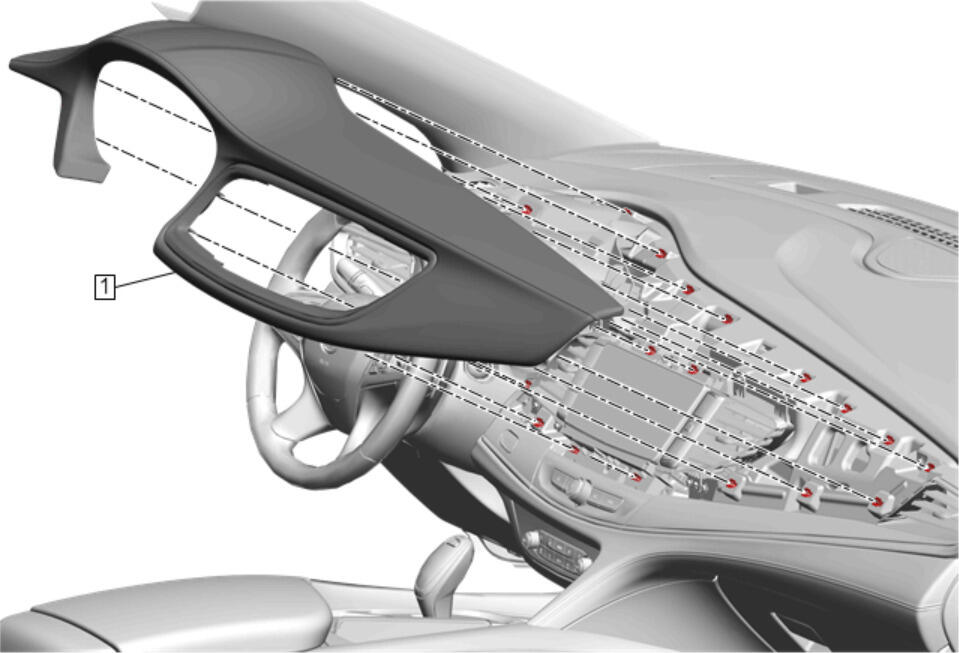

  25. GM4783609Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Pad (1) - Install - Instrument Panel Center Trim Pad Replacement

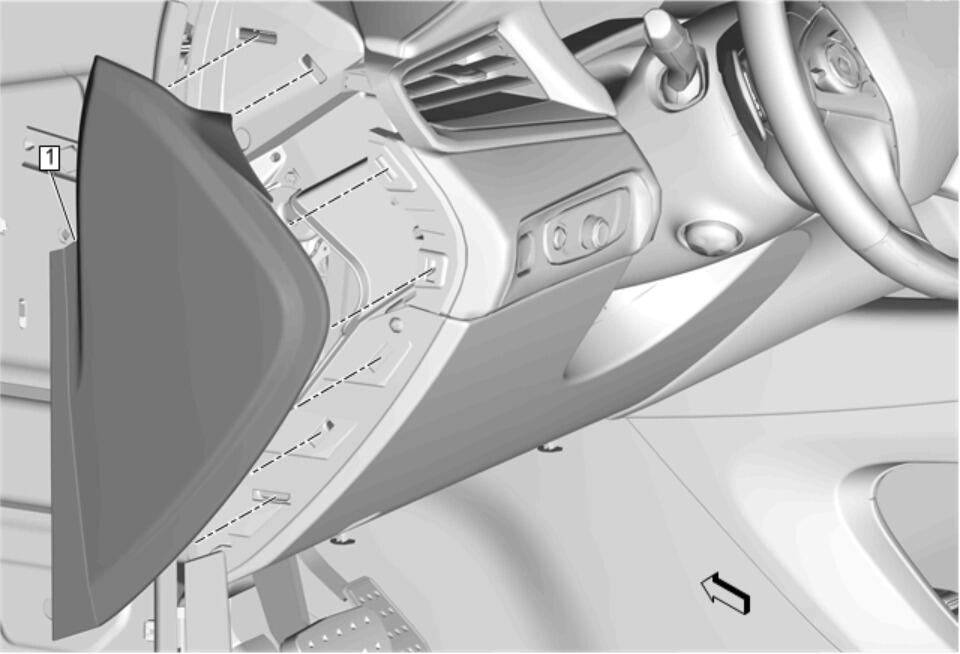

  26. GM4782879Courtesy of GENERAL MOTORS COMPANY

    Install the left and right instrument panel outer trim cover (1). Instrument Panel Outer Trim Cover Replacement

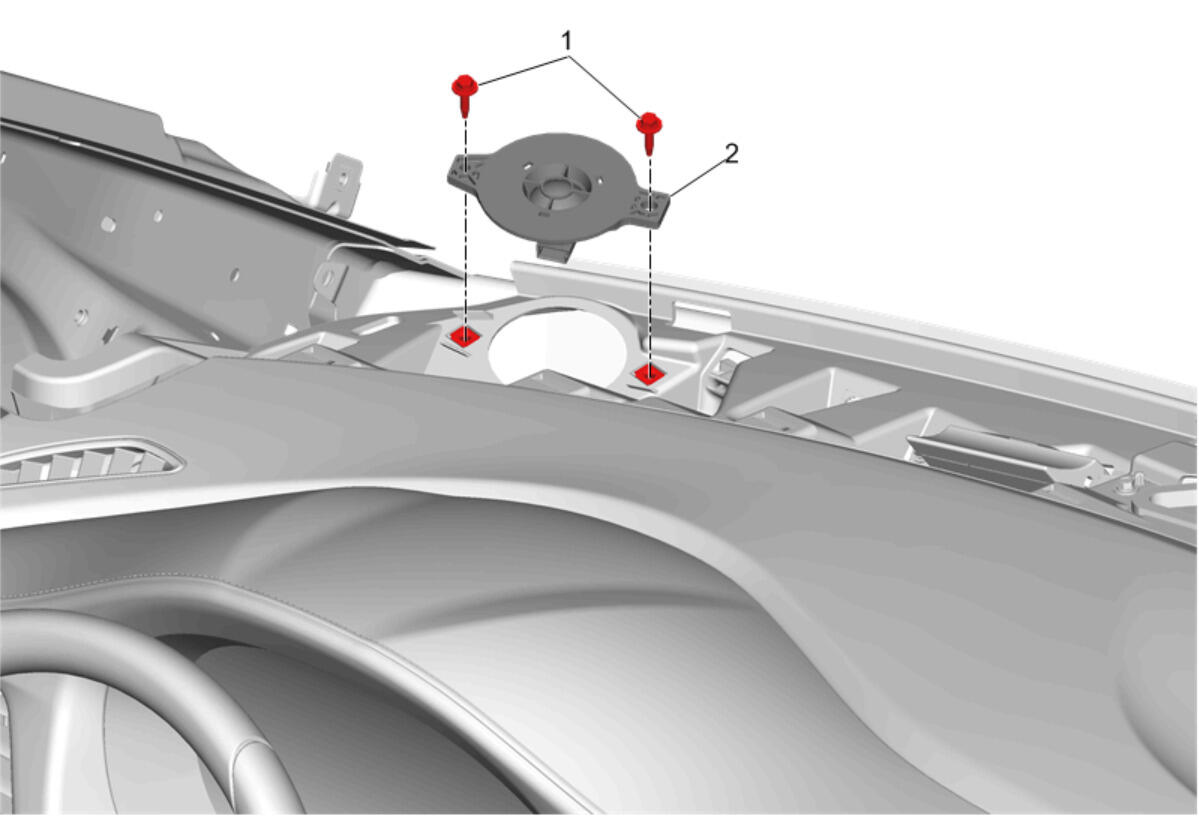

  27. GM4784647Courtesy of GENERAL MOTORS COMPANY

    Install the left and right radio front speaker (2). Radio Front Speaker Replacement

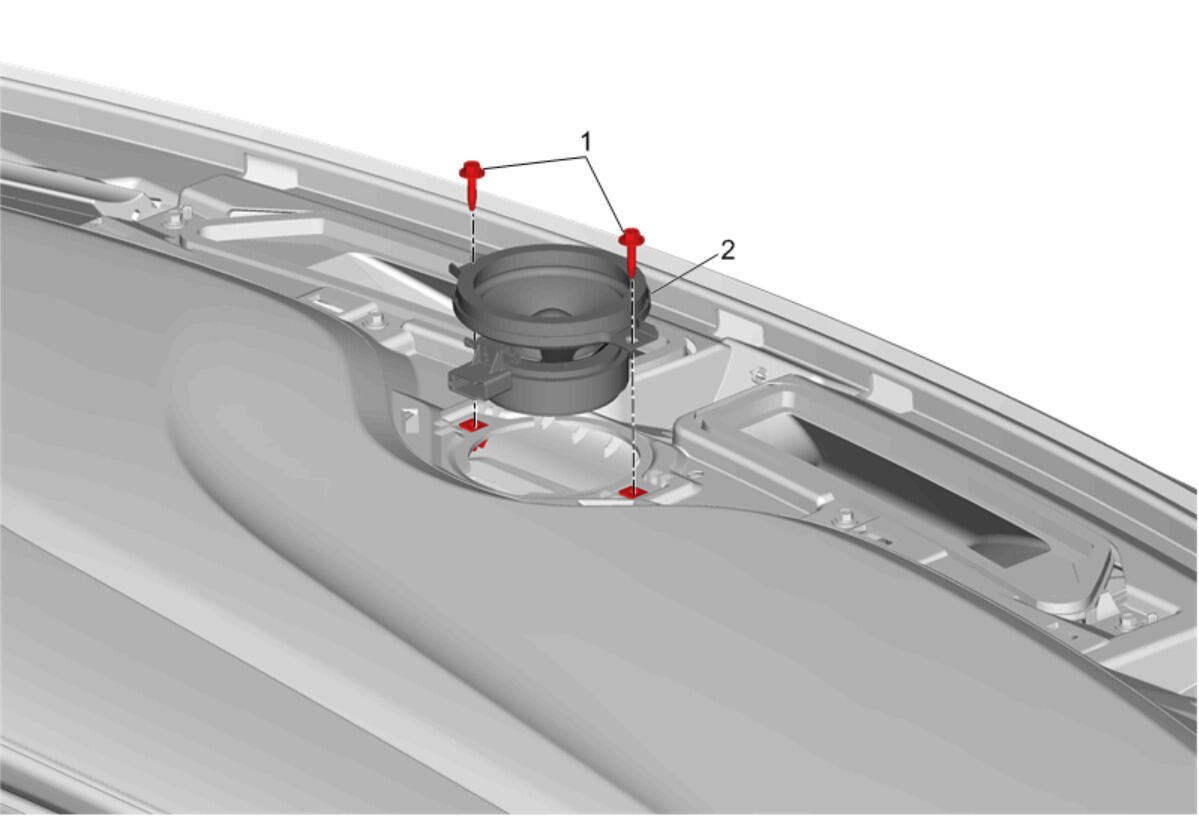

  28. GM4784642Courtesy of GENERAL MOTORS COMPANY

    Radio Front Center Speaker (2) - Install - Radio Front Center Speaker Replacement

  29. GM4782388Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Extension (1) - Install - Instrument Panel Extension Replacement

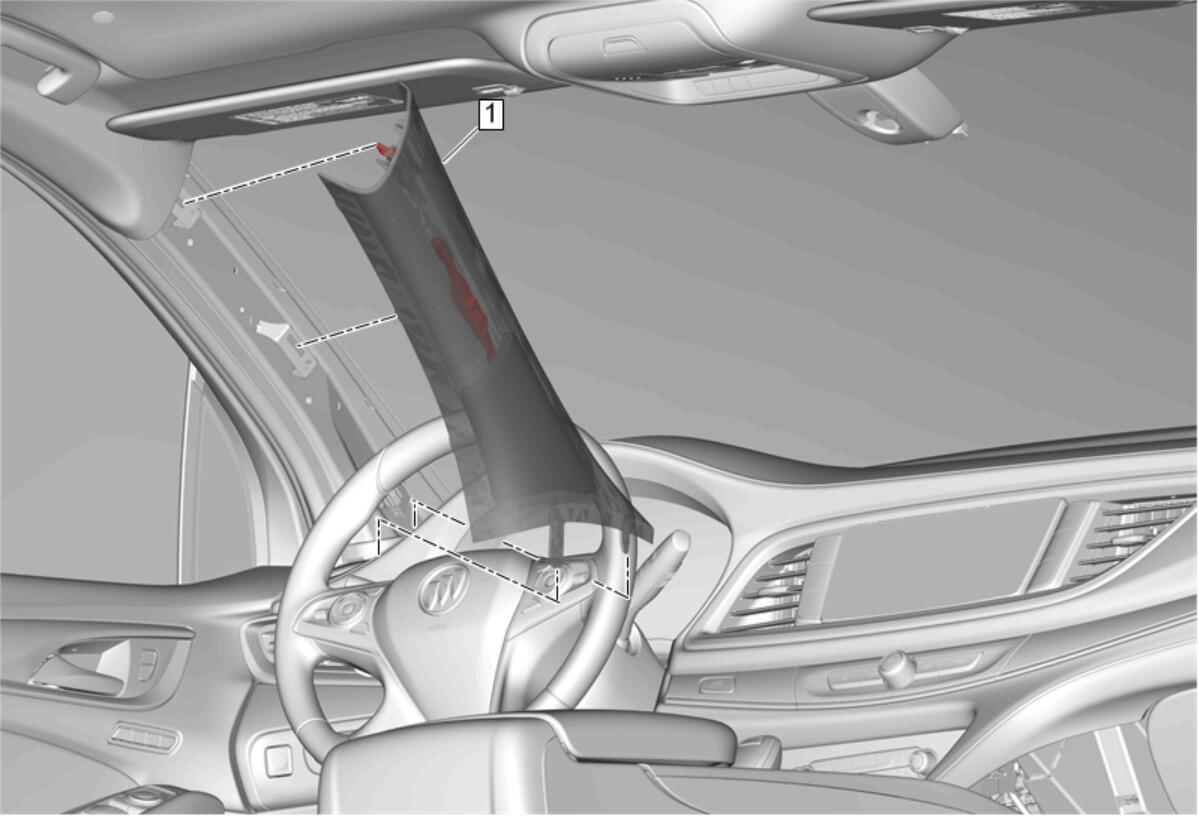

  30. GM4818736Courtesy of GENERAL MOTORS COMPANY

    Windshield Garnish Molding (1) - Install - Windshield Garnish Molding Replacement

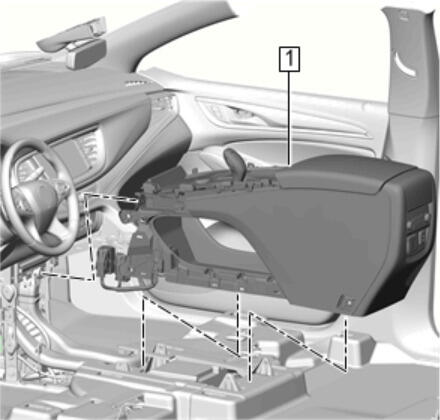

  31. GM4817425Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install - Front Floor Console Replacement

  32. GM4378271Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel (2) Install - Steering Wheel Replacement

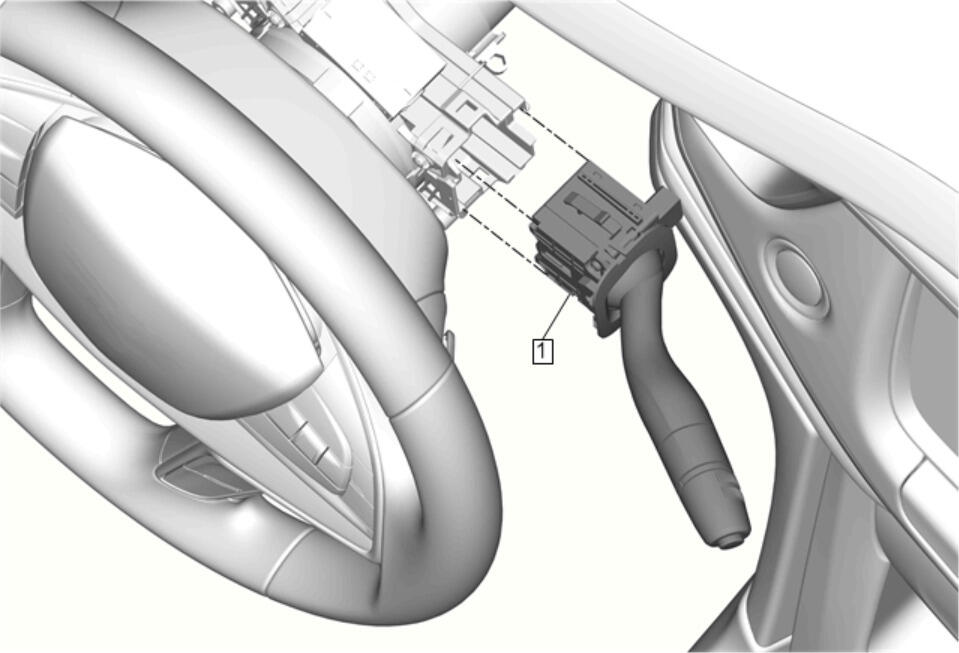

  33. GM4260379Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper and Washer Switch (1) Install - Windshield Wiper and Windshield Washer Switch Replacement

  34. GM4799432Courtesy of GENERAL MOTORS COMPANY

    Turn Signal Switch (1) Install - Turn Signal Switch Replacement
