Power Transfer Unit Extension Housing Installation
WARNING: This page is about a different variant/trim than selected.

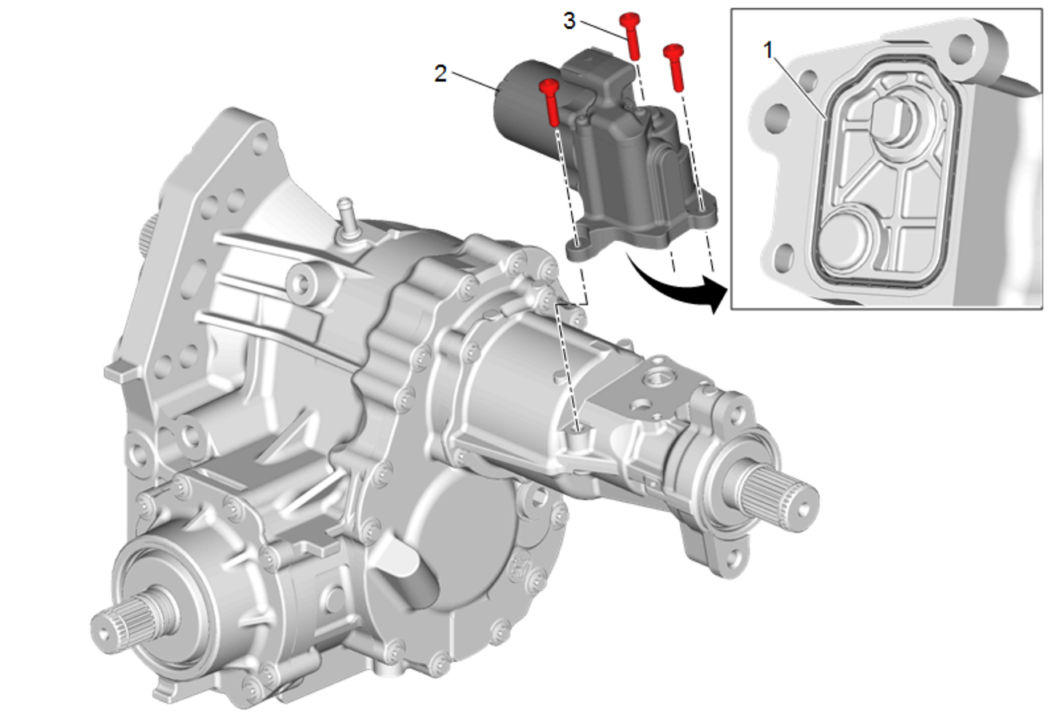

Power Transfer Unit Extension Housing Installation
| Callout | Component Name |
|---|---|
| 1 | Extension Housing Cover Seal - O-Ring Procedure Install a NEW seal. |
| 2 | Power Transfer Disconnect Linear Cam Procedure Ensure the tabs on the OD of cam align into the notched areas of the housing. |
| 3 | Power Transfer Disconnect Rotary Cam |
| 4 | Power Transfer Unit Extension Housing Power Transfer Unit Case Cleaning and Inspection |
| 5 | Power Transfer Unit Extension Housing Bolt [ 5x ] Tighten 22 N.m (16 lb-ft) |
