Power Transfer Unit Rear Output Shaft Housing Installation
WARNING: This page is about a different variant/trim than selected.
Power Transfer Unit Rear Output Shaft Housing Installation

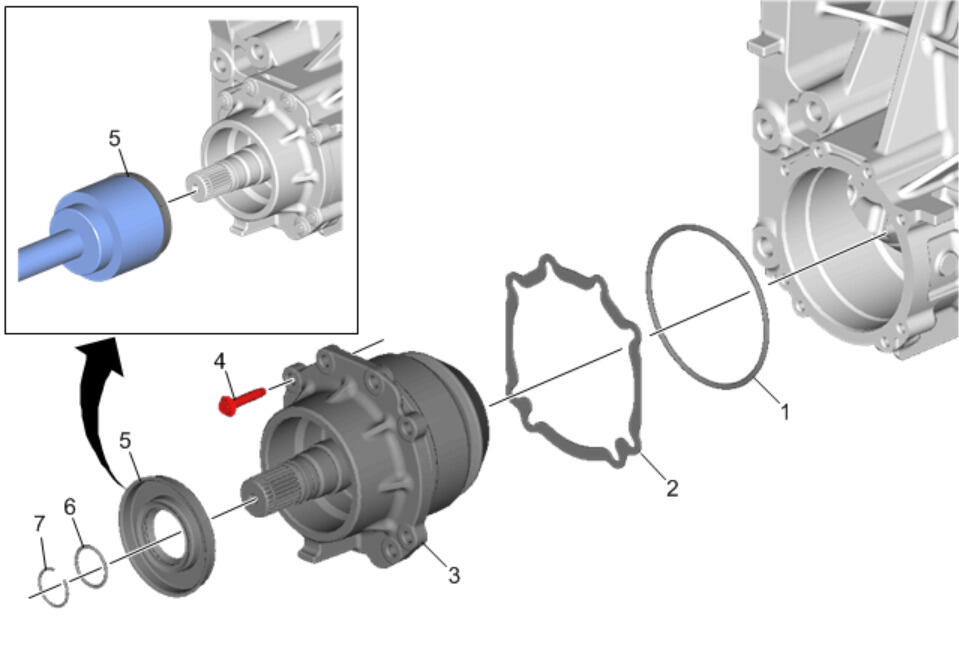

| Callout | Component Name |
|---|---|
| 1 | Power Transfer Unit Pinion Seal - O-Ring Procedure Apply a thin coating of gear oil to the housing O-ring. Refer to Adhesives, Fluids, Lubricants, and Sealers |
| 2 | Power Transfer Unit Rear Output Shaft Shim |
| 3 | Power Transfer Unit Rear Output Shaft Housing |
| 4 | Power Transfer Unit Rear Pinion Housing Bolt [ 8x ]
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb-ft) |
| 5 | Power Transfer Unit Output Shaft Seal
CAUTION:
When replacing power transfer unit case seals, use appropriate GM tools along with a hydraulic press. Failure to do so may result in misalignment or damage to the seal and/or power transfer unit. Special Tools
Equivalent regional tools: Refer to Special Tools . |
| 6 | Power Transfer Unit Propeller Shaft Seal - O-Ring |
| 7 | Power Transfer Unit Propeller Shaft Retainer Procedure Install a NEW retainer. |
