Power Transfer Unit Shift Actuator Installation
WARNING: This page is about a different variant/trim than selected.

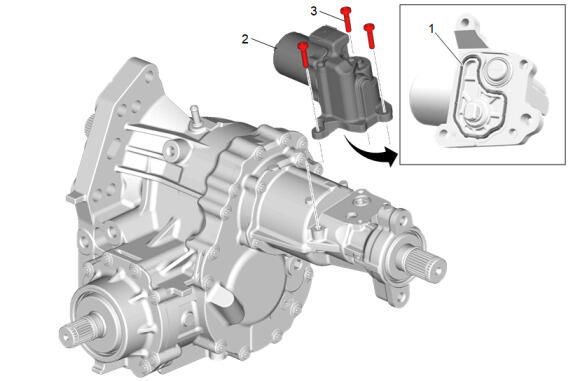

Power Transfer Unit Shift Actuator Installation
| Callout | Component Name |
|---|---|
| 1 | Power Transfer Unit Shift Actuator Seal Procedure The power transfer unit shift actuator seal is only available with the shift actuator. |
| 2 | Power Transfer Unit Shift Actuator |
| 3 | Power Transfer Unit Shift Actuator Bolt Tighten 10 N.m (89 lb/in) |
