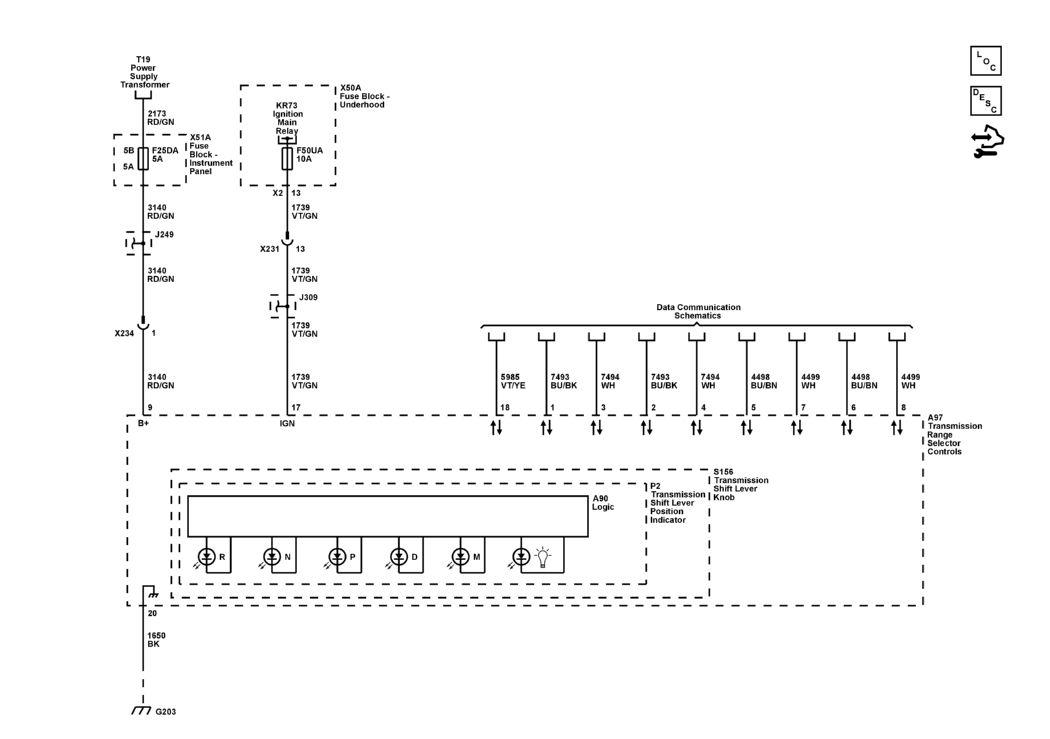

Electronic Shift Controls - Power, Ground, and Serial Data

GM5726935Courtesy of GENERAL MOTORS COMPANY
