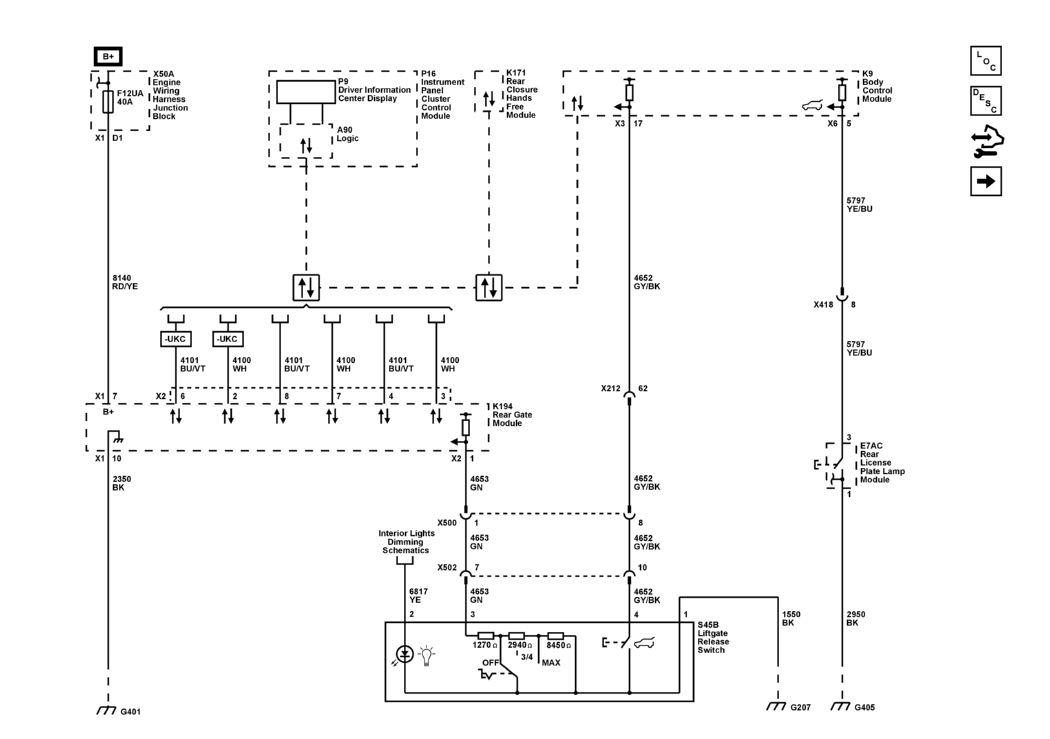

Power, Ground, Serial Data and Front Controls (TC2)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
