Communication Interface Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

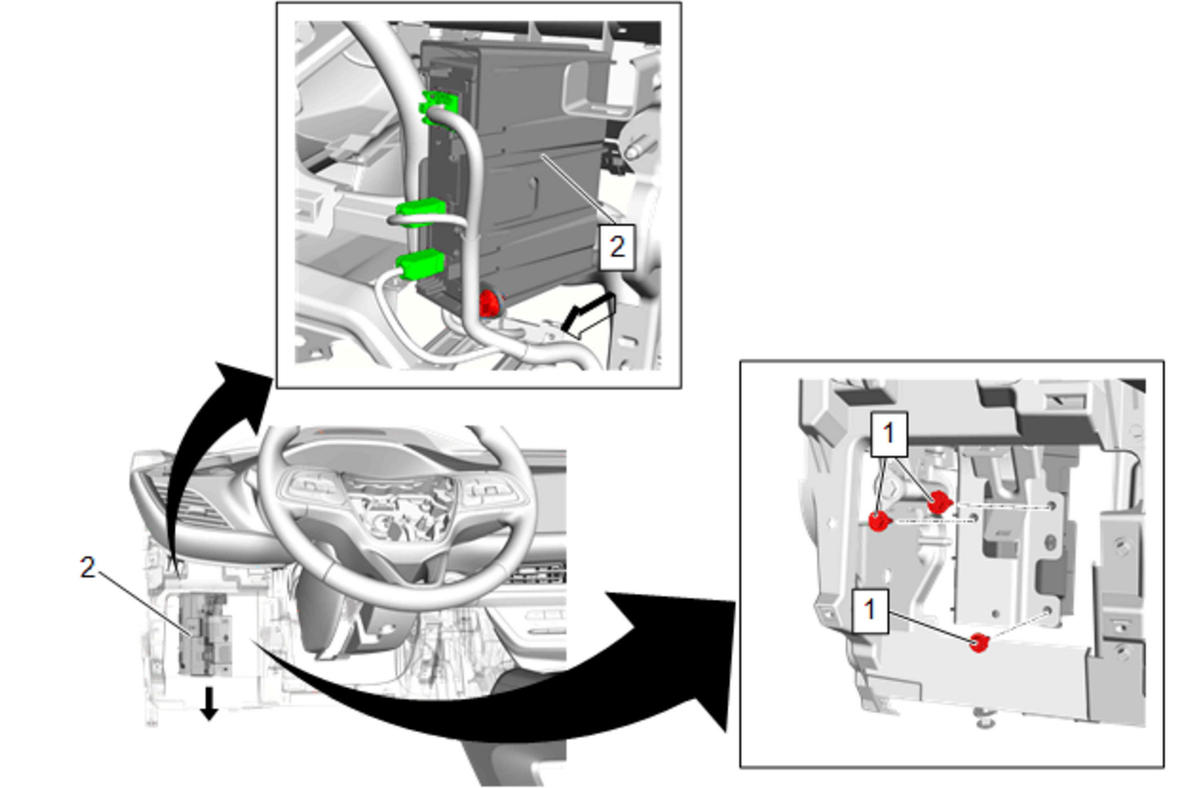

Callout	Component Name
Preliminary Procedure Instrument Panel Knee Bolster Replacement
1	Communication Interface Module Bracket Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) Procedure Position the instrument panel wiring harness junction block aside to secure the space enough to access to the bolts.
2	Communication Interface Module Bracket Procedure Disconnect all electrical connectors. If needed, remove the communication interface module. Communication Interface Module Replacement

Callout

Component Name

Preliminary Procedure
Instrument Panel Knee Bolster Replacement

Communication Interface Module Bracket Bolt [3x]

CAUTION:

Tighten
2.5 N.m (22 lb in)
Procedure
Position the instrument panel wiring harness junction block aside to secure the space enough to access to the bolts.

Communication Interface Module Bracket

Procedure

Disconnect all electrical connectors.
If needed, remove the communication interface module. Communication Interface Module Replacement
