Installation Procedure

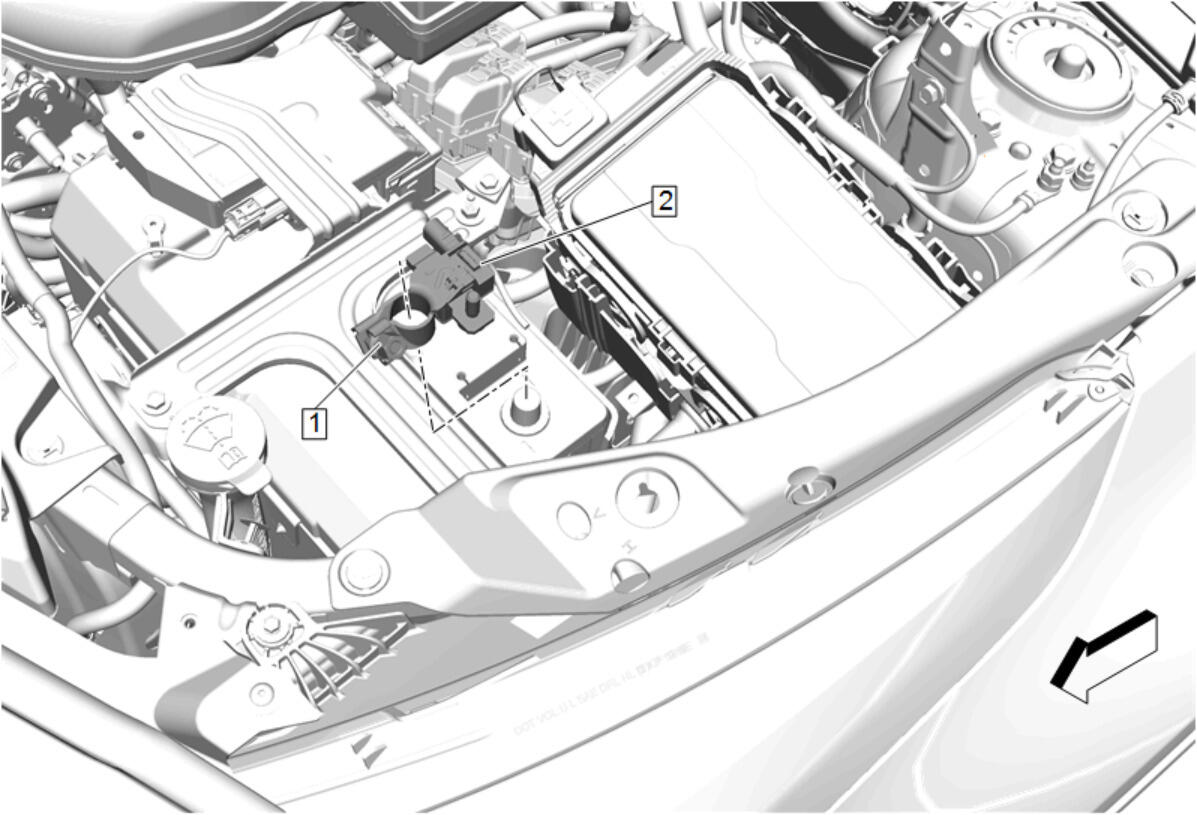

  1. GM5050436Courtesy of GENERAL MOTORS COMPANY

    Battery Monitor Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Post Negative Cable Clamp Nut (1) - Install and tighten 4.5 N.m (40 lb in)

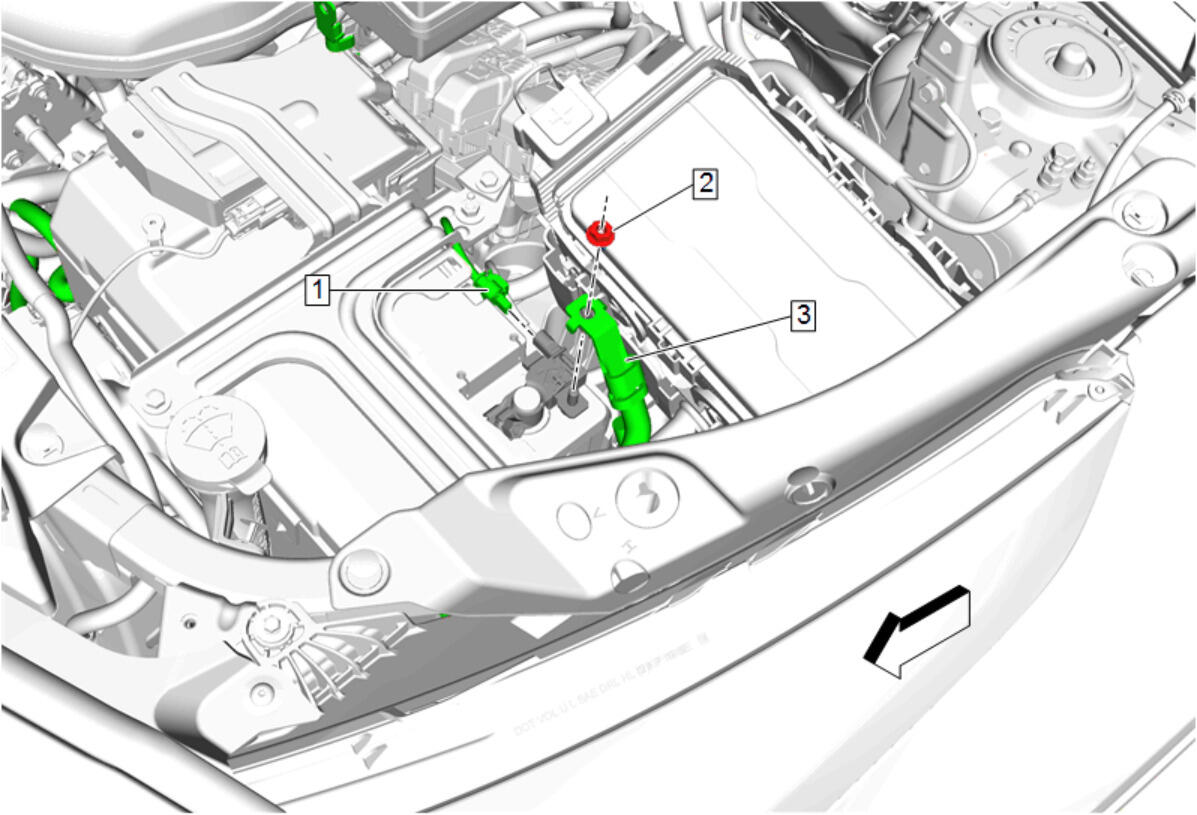

  3. GM5050431Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable (3) - Install

  4. Battery Negative Cable Nut (2) - Install and tighten 9 N.m (80 lb in)
  5. Electrical Connector (1) - Connect

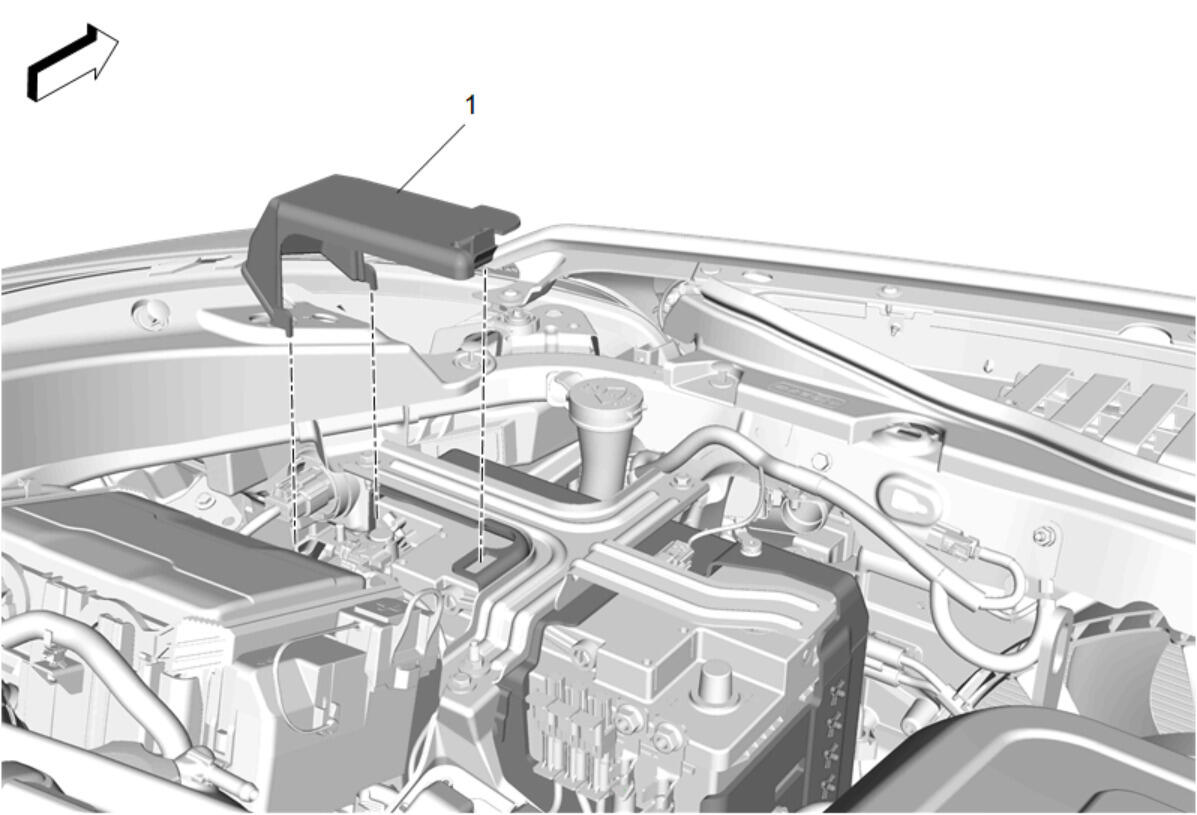

  6. GM5052693Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable Terminal Cover (1) - Install

  7. Perform a battery sensor module learn procedure. Battery Sensor Module Learn
