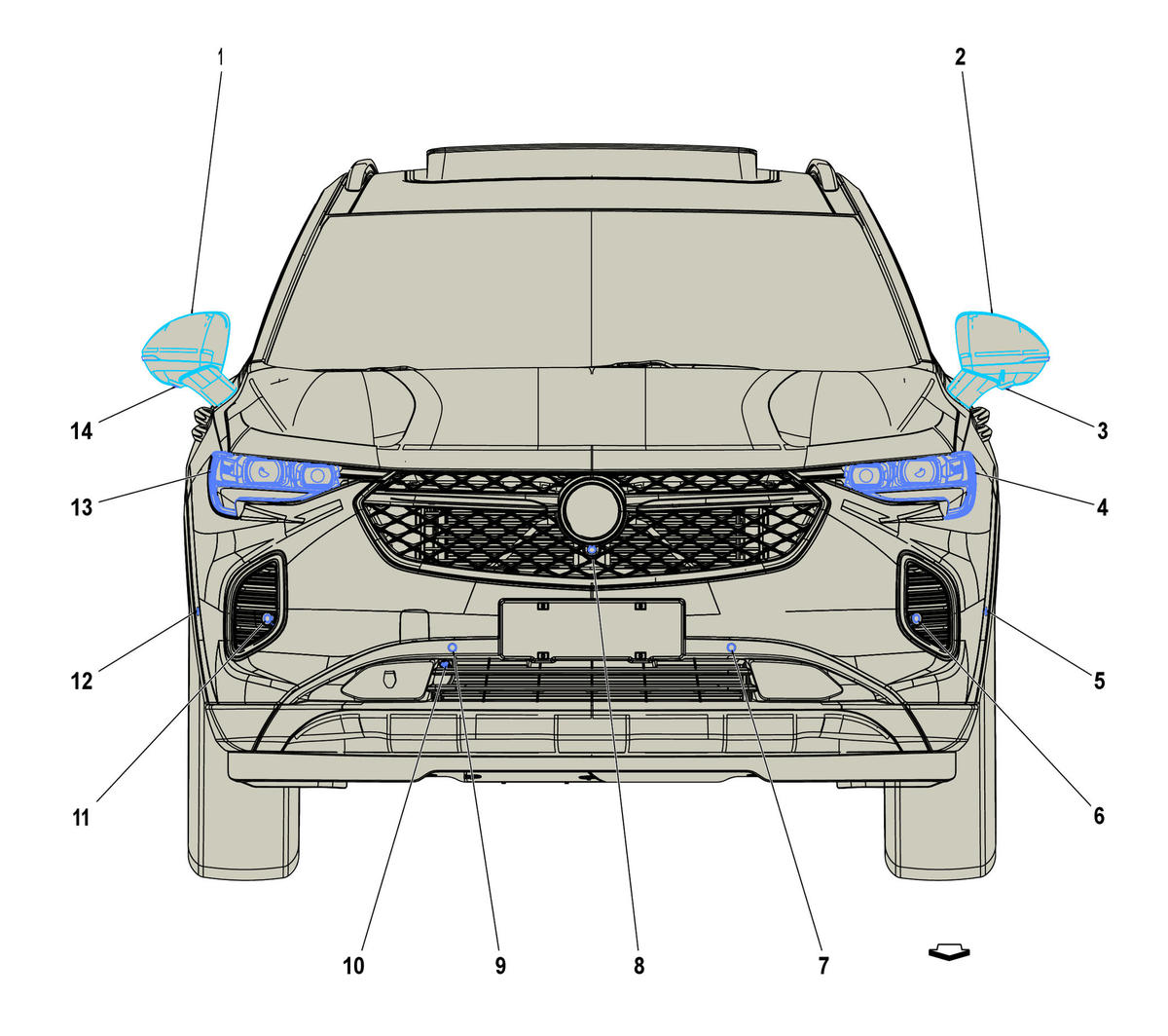

Front of Vehicle Components

Courtesy of GENERAL MOTORS COMPANY

Component Name	Callout
A9B Outside Rearview Mirror - Passenger A9B Outside Rearview Mirror - Passenger	1
A9A Outside Rearview Mirror - Driver A9A Outside Rearview Mirror - Driver	2
B225L Side View Driver Information Camera - Left (UV2)	3
E13LA Front Headlamp - Left E13LA Front Headlamp - Left (-T95/YS6) , or E13LA Front Headlamp - Left (T95/YS6)	4
B166LF Advanced Parking Assist Alarm Sensor - Left Front (UKZ) B166LF Advanced Parking Assist Alarm Sensor - Left Front (UKZ)	5
B306A Parking Assist Alarm Sensor - Front Left Outer (UD5/UKZ) B306A Parking Assist Alarm Sensor - Front Left Outer (UD5) , or B306A Parking Assist Alarm Sensor - Front Left Outer (UKZ)	6
B306B Parking Assist Alarm Sensor - Front Left Middle (UD5/UKZ) B306B Parking Assist Alarm Sensor - Front Left Middle (UD5) , or B306B Parking Assist Alarm Sensor - Front Left Middle (UKZ)	7
B174G Front View Driver Information Camera - Grille (UV2) B174G Front View Driver Information Camera - Grille (UV2)	8
B306C Parking Assist Alarm Sensor - Front Right Middle (UD5/UKZ) B306C Parking Assist Alarm Sensor - Front Right Middle (UD5) , or B306C Parking Assist Alarm Sensor - Front Right Middle (UKC)	9
B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor	10
B306D Parking Assist Alarm Sensor - Front Right Outer (UD5/UKZ) B306D Parking Assist Alarm Sensor - Front Right Outer (UD5) , or B306D Parking Assist Alarm Sensor - Front Right Outer (UKZ)	11
B166RF Advanced Parking Assist Alarm Sensor - Right Front (UKZ) B166RF Advanced Parking Assist Alarm Sensor - Right Front (UKZ)	12
E13RA Front Headlamp - Right E13RA Front Headlamp - Right (-T95/YS6) , or E13RA Front Headlamp - Right (T95/YS6)	13
B225R Side View Driver Information Camera - Right (UV2)	14
