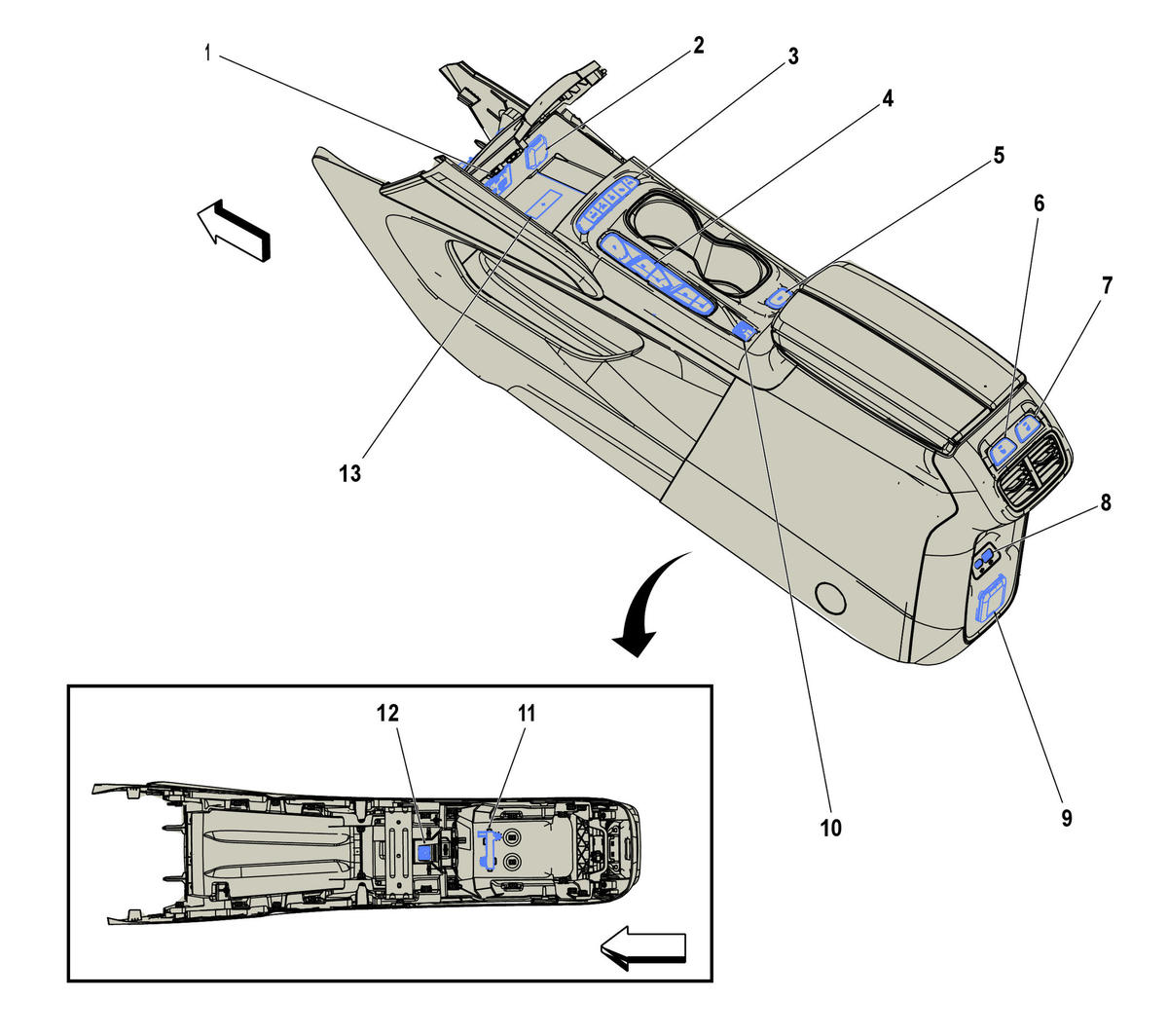

Floor Console Components
Floor Console Components
| Component Name | Callout |
|---|---|
| X23 Multimedia Receptacle X23 Multimedia Receptacle X1 , or X23 Multimedia Receptacle X2 | 1 |
| X80H Accessory Power Receptacle - Floor Console Front X80H Accessory Power Receptacle - Floor Console Front | 2 |
| S48E Floor Console Accessory Function Switch S48E Floor Console Accessory Function Switch | 3 |
| K212 Gear Shift Control Module K212 Gear Shift Control Module | 4 |
| S126 Ride Control Switch S126 Ride Control Switch | 5 |
| S32LR Rear Seat Heater Switch - Left (KA6) S32LR Rear Seat Heater Switch - Left (KA6) | 6 |
| S32RR Rear Seat Heater Switch - Right (KA6) S32RR Rear Seat Heater Switch - Right (KA6) | 7 |
| X92CD Dual Charge Only Receptacle - Floor Console Rear (USS) X92CD Dual Charge Only Receptacle - Floor Console Rear (USS) | 8 |
| X81AC Accessory Power Receptacle - Floor Console 110V AC (KI6) X81AC Accessory Power Receptacle - Floor Console 110V AC (KI6) | 9 |
| S91 Parking Brake Control Switch S91 Parking Brake Control Switch | 10 |
| T10K Low Frequency Console Antenna - Rear T10K Low Frequency Console Antenna - Rear | 11 |
| T1 Accessory AC and DC Power Control Module (KI6) T1 Accessory AC and DC Power Control Module (KI6) | 12 |
| T22 Wireless Accessory Charging Module (K4C) T22 Wireless Accessory Charging Module (K4C) | 13 |
