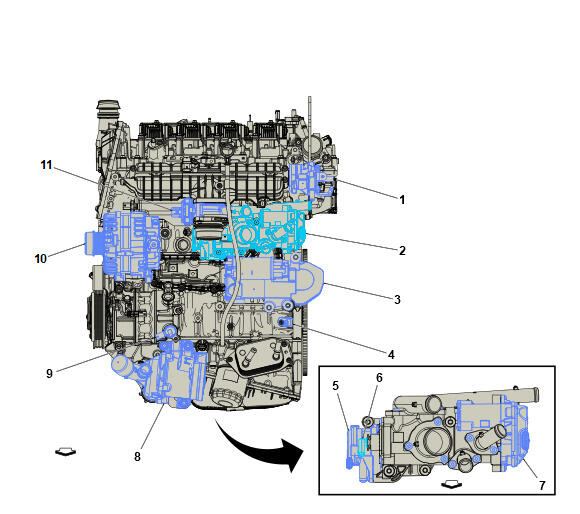

Engine Components - Front
Engine Components - Front
| Component Name | Callout |
|---|---|
| G58 Evaporative Emission Canister Purge Pump G58 Evaporative Emission Canister Purge Pump | 1 |
| Q97 Engine Coolant Flow Control Valve | 2 |
| M64 Starter M64 Starter X1 , or M64 Starter X2 | 3 |
| B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor | 4 |
| Q97B Engine Coolant Flow Control Valve - Block Q97B Engine Coolant Flow Control Valve - Block | 5 |
| B34B Engine Coolant Temperature Sensor 2 B34B Engine Coolant Temperature Sensor 2 | 6 |
| Q74 Engine Coolant Bypass Valve Q74 Engine Coolant Bypass Valve | 7 |
| G59 Engine Coolant Pump G59 Engine Coolant Pump | 8 |
| Q46 Air Conditioning Compressor Solenoid Valve Q46 Air Conditioning Compressor Solenoid Valve | 9 |
| G13 Generator G13 Generator X1 , or G13 Generator X2 | 10 |
| Q38 Throttle Body Q38 Throttle Body | 11 |
