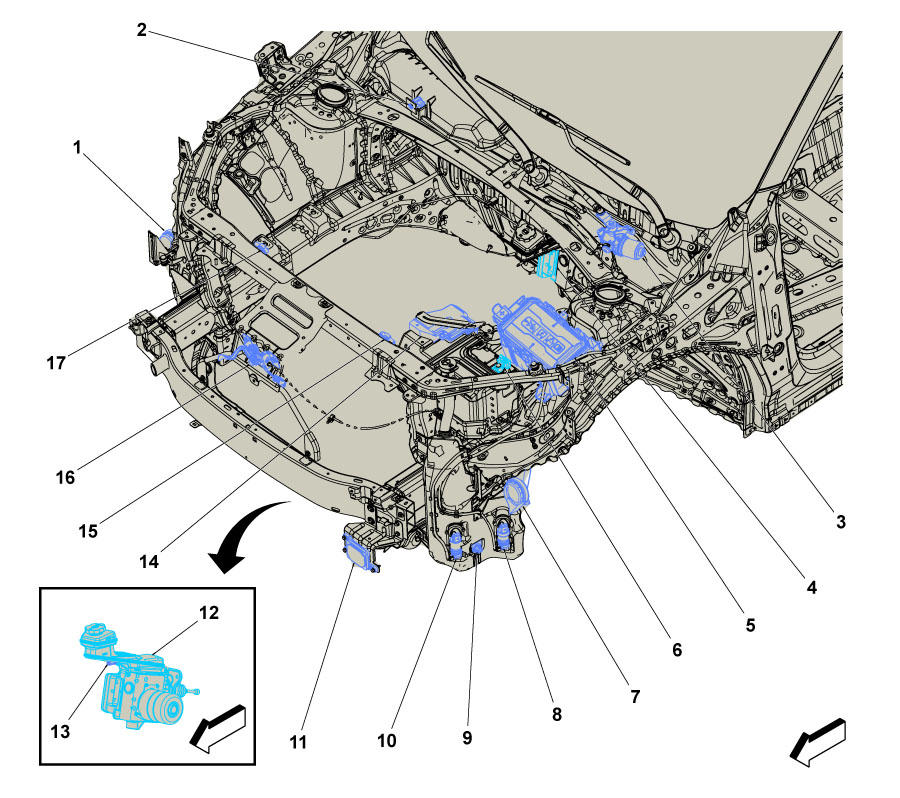

Engine Compartment Components (2 of 2)

GM5639094Courtesy of GENERAL MOTORS COMPANY
Engine Compartment Components (2 of 2)

Component Name Callout
P12B Horn - Low Note P12B Horn - Low Note 1
B108E Ambient Air Quality Sensor - Exterior (UEC) B108E Ambient Air Quality Sensor - Exterior (UEC) 2
M75 Windshield Wiper Motor M75 Windshield Wiper Motor 3
K160 Brake System Control Module K160 Brake System Control Module 4
X50A Engine Wiring Harness Junction Block X50A Engine Wiring Harness Junction Block X1 , or X50A Engine Wiring Harness Junction Block X10 , or X50A Engine Wiring Harness Junction Block X2 , or X50A Engine Wiring Harness Junction Block X3 , or X50A Engine Wiring Harness Junction Block X4 , or X50A Engine Wiring Harness Junction Block X5 , or X50A Engine Wiring Harness Junction Block X8 , or X50A Engine Wiring Harness Junction Block X9 5
B110 Battery Monitor Module B110 Battery Monitor Module X2 , or B110 Battery Monitor Module X3 6
P12A Horn - High Note P12A Horn - High Note 7
G24 Windshield Washer Pump G24 Windshield Washer Pump 8
B118 Windshield Washer Solvent Container Level Sensor B118 Windshield Washer Solvent Container Level Sensor 9
G19 Rear Window Washer Pump G19 Rear Window Washer Pump 10
B233B Forward Range Radar Sensor - Long Range (UGN) B233B Forward Range Radar Sensor - Long Range (UGN) 11
A104 Brake Master Cylinder 12
B20 Brake Fluid Level Sensor B20 Brake Fluid Level Sensor 13
X50B Battery Distribution Engine Compartment Fuse Block X50B Battery Distribution Engine Compartment Fuse Block X1 , or X50B Battery Distribution Engine Compartment Fuse Block X2 , or X50B Battery Distribution Engine Compartment Fuse Block X3 , or X50B Battery Distribution Engine Compartment Fuse Block X4 , or X50B Battery Distribution Engine Compartment Fuse Block X5 , or X50B Battery Distribution Engine Compartment Fuse Block X6 14
B58L Airbag Front End Discriminating Sensor - Left B58L Airbag Front End Discriminating Sensor - Left 15
B55 Engine Compartment Cover Switch B55 Engine Compartment Cover Switch 16
B58R Airbag Front End Discriminating Sensor - Right B58R Airbag Front End Discriminating Sensor - Right 17
