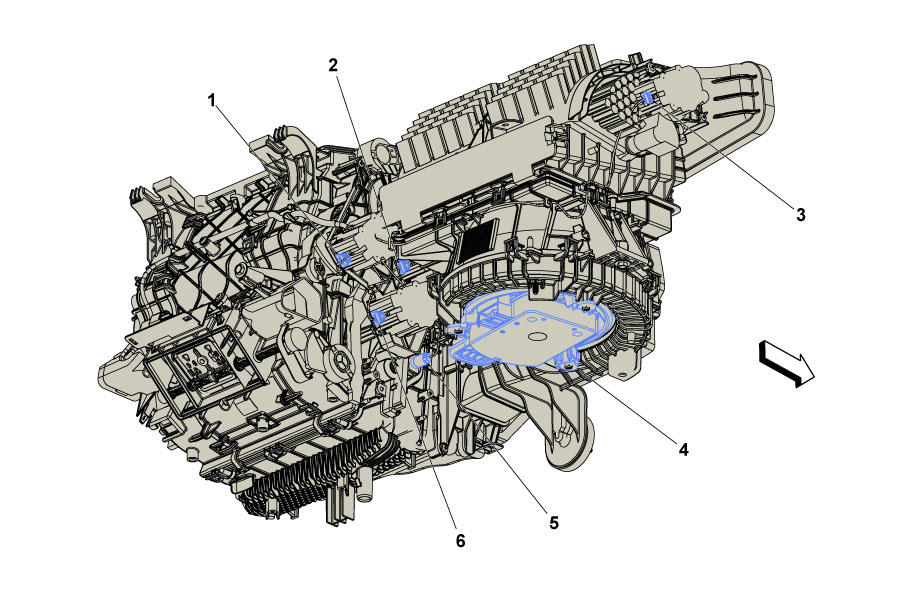

Heater and Air Conditioning Evaporator and Blower Module Components
Heater and Air Conditioning Evaporator and Blower Module Components
| Component Name | Callout |
|---|---|
| M37 Mode Valve Actuator M37 Mode Valve Actuator | 1 |
| M6L Temperature Valve Actuator - Left M6L Temperature Valve Actuator - Left | 2 |
| M4 Air Inlet Valve Actuator M4 Air Inlet Valve Actuator | 3 |
| M8 Blower Motor M8 Blower Motor | 4 |
| B39 Air Conditioning Evaporator Air Temperature Sensor B39 Air Conditioning Evaporator Air Temperature Sensor | 5 |
| M6R Temperature Valve Actuator - Right (CJ2) M6R Temperature Valve Actuator - Right (CJ2) | 6 |
