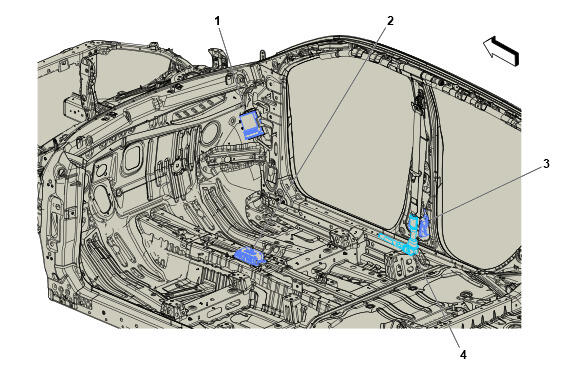

Right Front of Passenger Compartment Components

GM5639153Courtesy of GENERAL MOTORS COMPANY
Right Front of Passenger Compartment Components

Component Name Callout
K219 Lighting Control Module K219 Lighting Control Module X1 , or K219 Lighting Control Module X2 , or K219 Lighting Control Module X3 , or K219 Lighting Control Module X4 , or K219 Lighting Control Module X5 1
K36 Restraints Control Module K36 Restraints Control Module X1 , or K36 Restraints Control Module X2 2
F112P Front Seat Belt Retractor - Passenger F112P Front Seat Belt Retractor - Passenger 3
F113P Front Seat Belt Anchor Plate Tensioner - Passenger F113P Front Seat Belt Anchor Plate Tensioner - Passenger 4
