Top of Windshield Components

GM5639156Courtesy of GENERAL MOTORS COMPANY

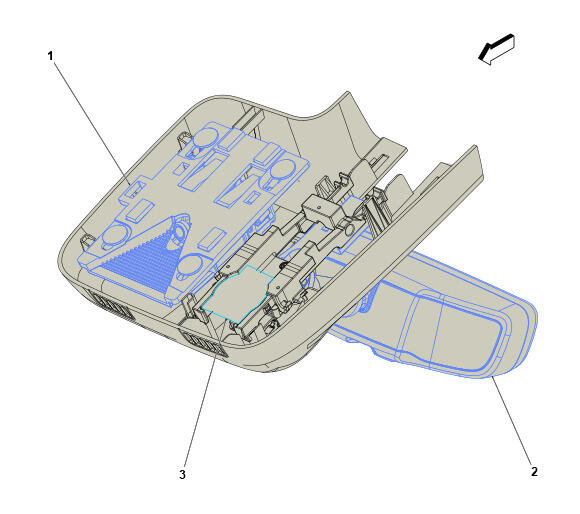

Top of Windshield Components

Component Name Callout
B174W Front View Camera - Windshield B174W Front View Camera - Windshield 1
A10 Inside Rearview Mirror (DD8/DRZ) A10 Inside Rearview Mirror X1 (DD8/DRZ) , or A10 Inside Rearview Mirror X2 (DRZ) 2
B160 Inside Air Moisture and Windshield Temperature Sensor B160 Inside Air Moisture and Windshield Temperature Sensor 3
