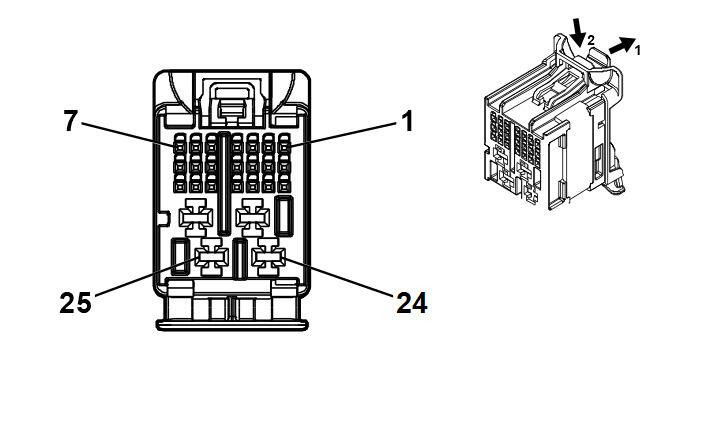

K9 Body Control Module X1
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13534967
- Service Connector: 13534967
- Description: 25 - Way F 0.5 MQS, 2.8 MCP Series (BK with GY Inner Connector)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
13575435 |
J-35616-4A (PU) |
J-38125-215A |
| II |
19370262 |
EL-35616-58 (BK) |
EL-38125-58 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
BU / GY |
754 |
Blower Motor Speed Control |
II |
- |
| 6 |
0.35 |
WH / YE |
4634 |
HVAC Remote Enable Signal |
II |
- |
| 7 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.35 |
GY / GN |
4636 |
HVAC System Enable Signal |
II |
- |
| 12 |
0.35 |
GY |
728 |
Security Indicator Control |
II |
- |
| 13 - 14 |
- |
- |
- |
Not Occupied |
- |
- |
| 15 |
0.35 |
GY |
590 |
Driver Solar Sensor Signal |
II |
- |
| 16 |
0.35 |
GY |
6137 |
A/C Evaporator Temperature Sensor Signal |
II |
- |
| 17 |
0.35 |
WH / BU |
278 |
Ambient Light Sensor Signal |
II |
- |
| 18 |
0.35 |
BU / WH |
734 |
Inside Air Temperature Sensor Signal |
II |
- |
| 19 |
- |
- |
- |
Not Occupied |
- |
- |
| 20 |
0.35 |
GN / VT |
2852 |
Body Control Module LIN Bus 6 |
II |
- |
| 21 - 22 |
- |
- |
- |
Not Occupied |
- |
- |
| 23 |
1 |
RD / GY |
5540 |
Battery Positive Voltage |
I |
- |
| 24 |
- |
- |
- |
Not Occupied |
- |
- |
| 25 |
1 |
RD / VT |
5640 |
Battery Positive Voltage |
I |
- |
