K9 Body Control Module X3

Courtesy of GENERAL MOTORS COMPANY

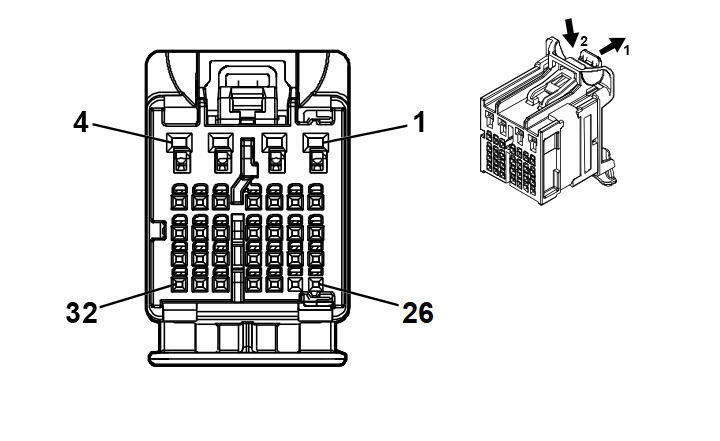

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	19370262	EL-35616-58 (BK)	EL-38125-58
II	84729890	J-35616-12 (BU)	J-38125-215A

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1 - 3	-	-	-	Not Occupied	-	-
4	0.75	YE	6817	LED Backlight Dimming Control 1	II	-
5	-	-	-	Not Occupied	-	-
6	0.35	BN / BU	391	Rear Window Wiper Switch Signal	I	-
7 - 8	-	-	-	Not Occupied	-	-
9	0.35	YE / GY	44	Instrument Panel Lamp Dimmer Switch Signal	I	-
10	0.35	GN / BK	2858	Body Control Module LIN Bus 12	I	-
11 - 12	-	-	-	Not Occupied	-	-
13	0.35	WH	3152	Lane Departure Warning Indicator Control	I	-
14	0.35	GN / BN	5852	Rear Parking Assist Disable LED Signal	I	-
15	0.35	GN	1110	Stop/Start Indicator Control	I	-
16	0.35	GN / BU	761	Blower Speed Feedback Signal	I	-
17	0.35	GY / BK	4652	Rear Closure Open/Close Switch Signal	I	TC2
18	0.35	BK / YE	5005	Instrument Panel Lamp Dimmer Switch Low Reference	I	-
19	0.35	BU / BK	5719	Ignition Mode Switch Start LED Signal	I	-
20 - 22	-	-	-	Not Occupied	-	-
23	0.35	BU	1111	Stop/Start Switch Signal	I	-
24 - 25	-	-	-	Not Occupied	-	-
26	0.35	GY / BN	3904	Auto High Beam Assist Switch Signal	I	-
27	0.35	GY / WH	3153	Lane Departure Warning Disable Switch Signal	I	-
28 - 30	-	-	-	Not Occupied	-	-
31	0.35	GY / GN	2555	Rear Parking Assist Disable Signal	I	-
32	0.35	BU / BN	3161	Parking Assist Parallel Parking Disable Switch Signal	I	UKZ
