K9 Body Control Module X5

Courtesy of GENERAL MOTORS COMPANY

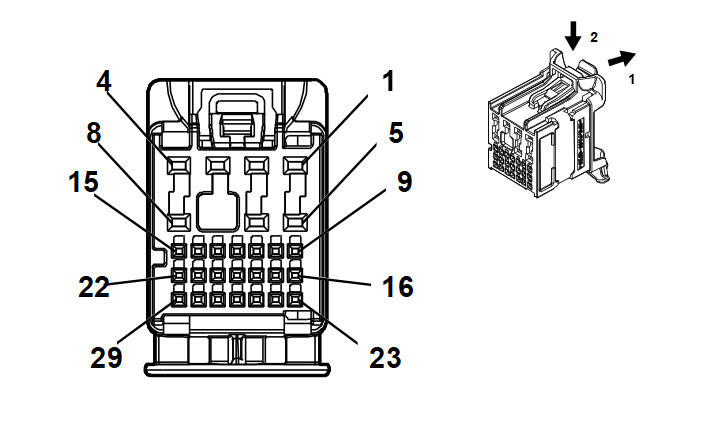

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	19370262	EL-35616-58 (BK)	EL-38125-58
II	84729890	J-35616-12 (BU)	J-38125-215A

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	-	-	-	Not Occupied	-	-
2	0.5	BU / BN	7573	A/C Compressor Solenoid Valve Control	II	-
3	0.5	BU / YE	7574	A/C Compressor Solenoid Valve Control	II	-
4	0.75	WH	2679	Lock Actuators Unlock Control 1	II	-
5	-	-	-	Not Occupied	-	-
6	0.5 0.75	YE YE	6817 6817	LED Backlight Dimming Control 1 LED Backlight Dimming Control 1	II II	TC2-UG1 UG1
7	-	-	-	Not Occupied	-	-
8	0.75	GY	2681	Left Front Door Lock Actuator Lock Control	II	-
9 - 10	-	-	-	Not Occupied	-	-
11	0.35	BN / WH	28	Horn Relay Control	I	-
12	0.35	WH	4978	AUTOSAR CAN Bus [-] 2 Serial Data	I	-
13	0.35	BU / YE	4979	AUTOSAR CAN Bus [+] 2 Serial Data	I	-
14	-	-	-	Not Occupied	-	-
15	0.35	WH / YE	7557	Interior Door Handle Accent Lighting Control	I	C93
16	0.35	VT	4301	Passive Entry Left Front Antenna Signal High	I	-
17	0.35	GN / YE	2855	Body Control Module LIN Bus 9	I	-
18	0.35	VT / GY	126	Left Front Door Open Switch Signal	I	-
19	0.35	GN / YE	6134	Body Control Module LIN Bus 3	I	-
20	-	-	-	Not Occupied	-	-
21	0.35	WH / BU	6311	Cruise/ETC/TCC Brake Signal	I	-
22	0.35	BN / VT	193	Rear Defogger Relay Control	I	-
23	0.35	VT / GY	4302	Passive Entry Left Front Antenna Signal Low	I	-
24	0.35	WH	5359	Brake Apply Sensor Control	I	-
25	0.35	BU / YE	5361	Brake Apply Sensor Signal	I	-
26	0.35	BK / BN	5360	Brake Apply Sensor Low Reference	I	-
27 - 29	-	-	-	Not Occupied	-	-
