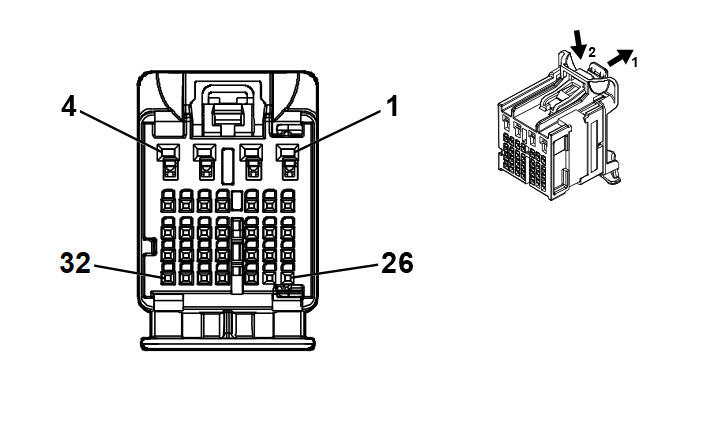

K9 Body Control Module X6

Courtesy of GENERAL MOTORS COMPANY

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	19370262	EL-35616-58 (BK)	EL-38125-58
II	84729890	J-35616-12 (BU)	J-38125-215A

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	-	-	-	Not Occupied	-	-
2	0.75	VT / WH	1094	Right Rear Door Lock Actuator Lock Control	II	-
3	0.75	GY / BK	2680	Lock Actuators Unlock Control 2	II	-
4	-	-	-	Not Occupied	-	-
5	0.35	YE / BU	5797	Rear Closure Handle Switch Open Signal	I	-
6	-	-	-	Not Occupied	-	-
7	0.35	BN / GN	3568	Rear Closure Passive Entry Antenna High Signal	I	-
8	0.35	GN / GY	3569	Rear Closure Passive Entry Antenna Low Signal	I	-
9	-	-	-	Not Occupied	-	-
10	0.35	GN / GY	737	Rear Compartment Courtesy Lamp Control	I	-
11	-	-	-	Not Occupied	-	-
12	0.35	WH / VT	4994	Left Rear Door Exterior Switch Unlock Signal	I	-
13	0.35	GN / BN	6132	Body Control Module LIN Bus 1	I	USK
14 - 18	-	-	-	Not Occupied	-	-
19	0.35	GY / BU	4995	Right Rear Door Exterior Switch Unlock Signal	I	-
20 - 21	-	-	-	Not Occupied	-	-
22	0.35	BN / GN	4064	Hood Status B Signal	I	-
23	0.35	WH	1638	Left Rear Seat Heating High Indicator Control	I	KA6
24	0.35	BN / WH	1635	Right Rear Seat Heating High Indicator Control	I	KA6
25 - 28	-	-	-	Not Occupied	-	-
29	0.35	BU	2675	Left Front Exterior Door Handle Switch Unlock Signal	I	-
30	0.35	GY / VT	2676	Right Front Door Exterior Switch Unlock Signal	I	-
31 - 32	-	-	-	Not Occupied	-	-
