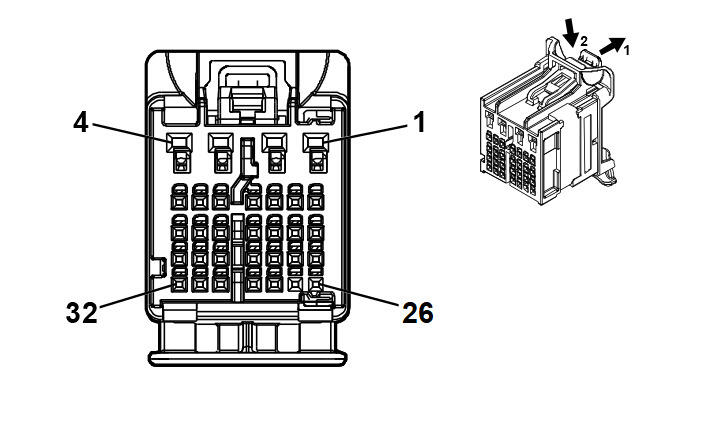

K9 Body Control Module X7
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13534979
- Service Connector: 13534979
- Description: 32 - Way F 0.5 MQS, 1.2 OCS Series (PU with GY Inner Connector)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19370262 |
EL-35616-58 (BK) |
EL-38125-58 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 18 |
- |
- |
- |
Not Occupied |
- |
- |
| 19 |
0.35 |
GN / VT |
2857 |
Body Control Module LIN Bus 11 |
I |
- |
| 20 - 32 |
- |
- |
- |
Not Occupied |
- |
- |
